Second Row Double Seat: Removal

Short wheelbase

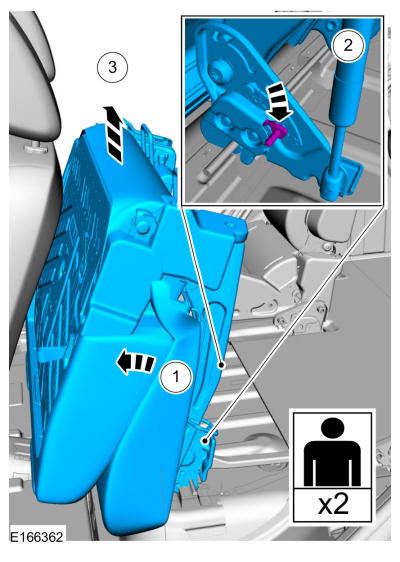

1. Remove the double seat.
   1. Tilt the seat forward.
   2. Release the seat base floor latch.
   3. Remove the seat.

   Courtesy of FORD MOTOR COMPANY

   Long wheelbase

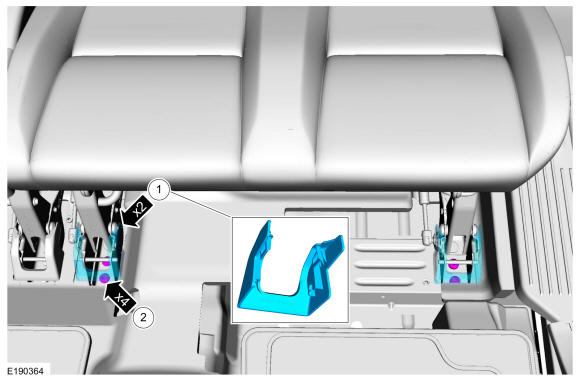

2. Remove the seat bolts.
   1. Remove the seat bolt covers.
   2. Remove the seat bolts.

      Torque: 33 lb.ft (45 Nm)

   Courtesy of FORD MOTOR COMPANY

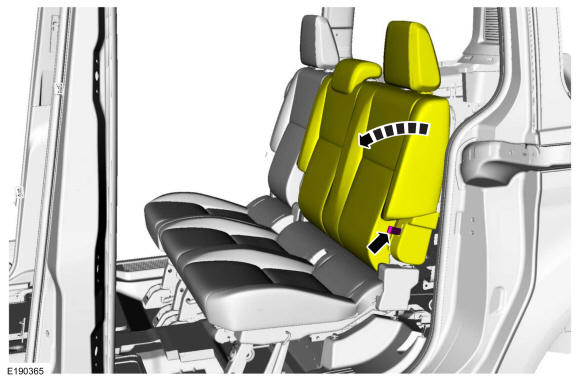

3. Pull the strap and lock the seat backrest in the fold-flat position.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: The seat must be locked in the fold-flat position to remove the seat.
   NOTE: To unlock the seat from the fold-flat position, pull the large release strap, lift upward at the front of the seat cushion and move the seat rearward, clasping the seat latch feet to the floor strikers.
   NOTE: The seat latch feet must be clasped to the floor strikers before the backrest can be pivoted to the upright position.

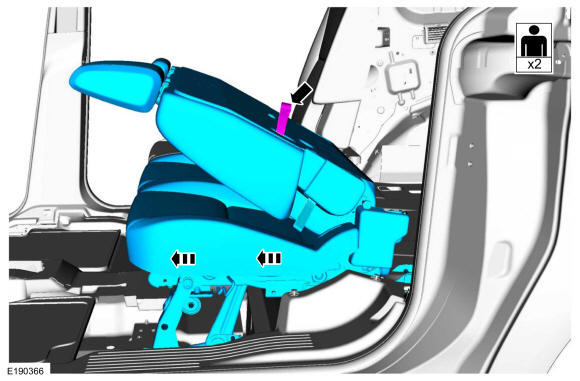

   Pull the large strap, move the seat forward to the lowered position and remove the double seat.

Courtesy of FORD MOTOR COMPANY
