Second Row Double Seat Armrest: Removal

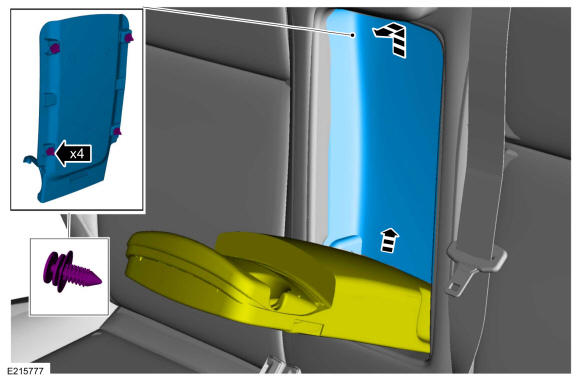

  1. Release the pin-type retainers and remove the armrest back panel.
    GFD306301Courtesy of FORD MOTOR COMPANY

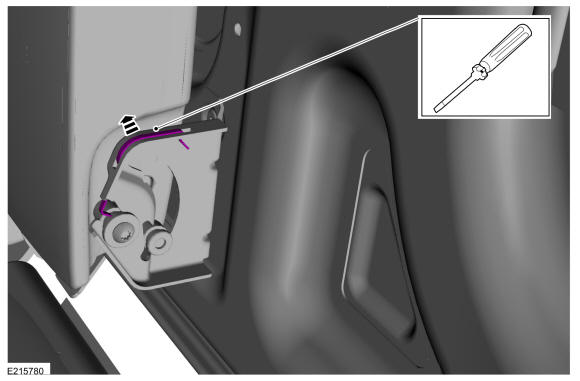

  2. NOTE: The rear seat backrest cover has been removed for clarity.

    On both sides. Remove the armrest locking clip.

    GFD306302Courtesy of FORD MOTOR COMPANY

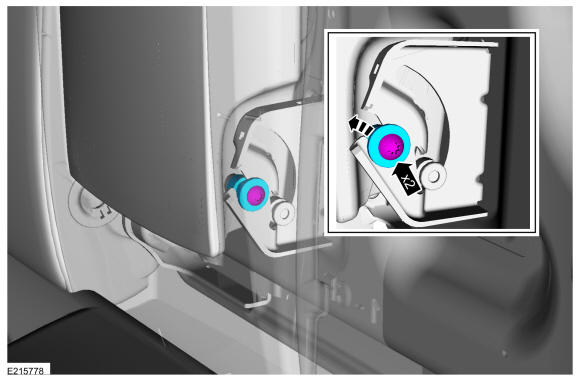

  3. On both sides. Remove the armrest fasteners.
    GFD306303Courtesy of FORD MOTOR COMPANY

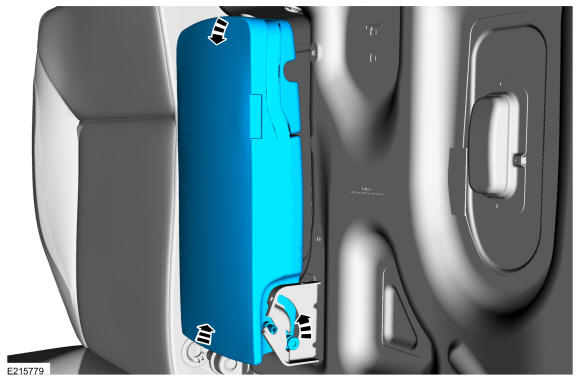

  4. NOTE: The rear seat backrest cover has been removed for clarity.

    Lift and rotate the armrest to release it from the armrest hinges. Remove the armrest.

GFD306304Courtesy of FORD MOTOR COMPANY
