Front Seat Lumbar Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .
  2. Remove the screw and position the lumbar actuator aside.

    Torque: 9 lb.in (1 Nm)

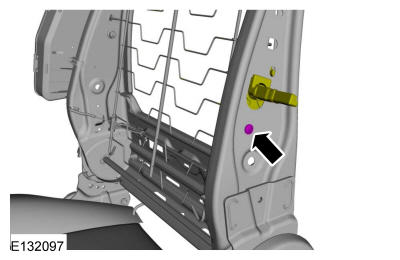

    GFD306249Courtesy of FORD MOTOR COMPANY
  3. Detach the lumbar assembly J-hooks and remove the lumbar assembly.

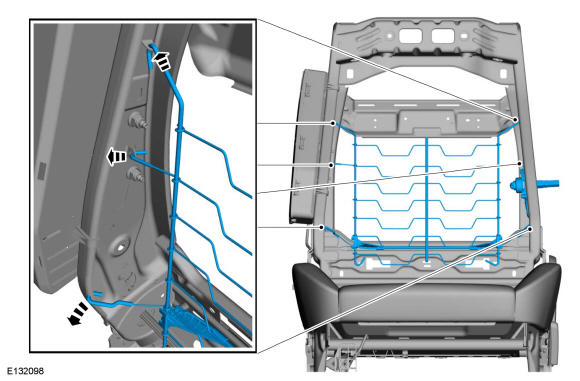

GFD306250Courtesy of FORD MOTOR COMPANY
