Front Seat Backrest Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seat. Refer to: Front Seat .
NOTE: Typical head restraint guide sleeve shown, others similar.

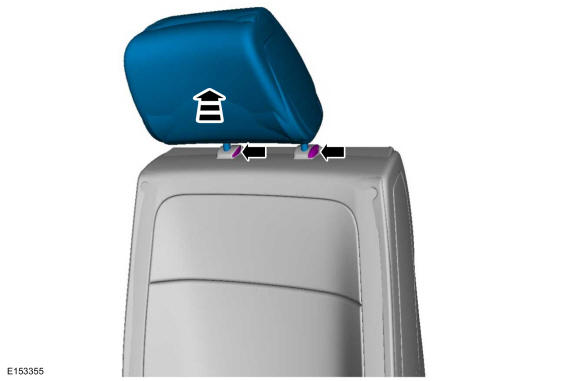

Depress the locking tabs and remove the head restraint.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphics for this step in installation.

NOTE: Seat backrest cover removed for clarity.

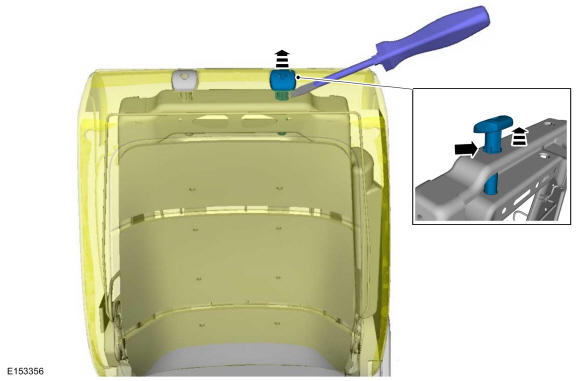

Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

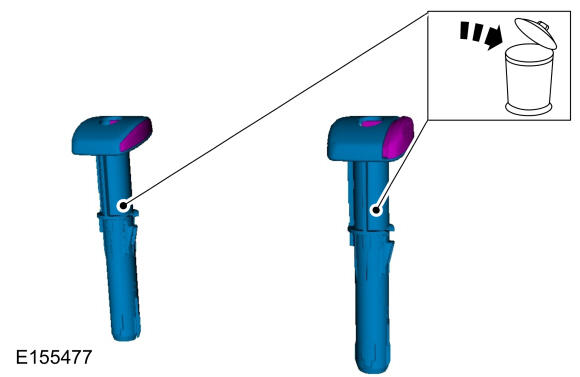

Discard the head restraint guide sleeves.

Courtesy of FORD MOTOR COMPANY

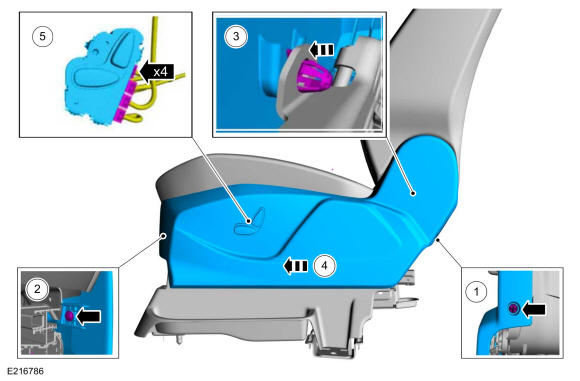

Power seat
1. Remove the screw.
  Torque: 27 lb.in (3 Nm)
2. Remove the screw.
  Torque: 27 lb.in (3 Nm)
3. Pull the side shield to release it from the backrest.
4. Slide the side shield forward.
5. Disconnect the power seat electrical connector and remove the side shield.
Courtesy of FORD MOTOR COMPANY

Manual seat
Remove the backrest recline handle.
1. Remove the fastener cover.
2. Remove the bolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Typical seat shown, others similar.

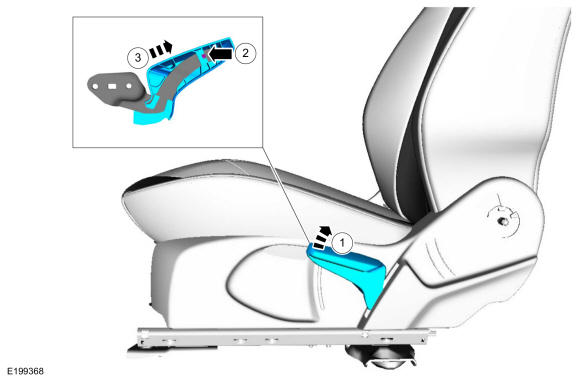

If equipped. Remove the seat height adjuster handle.
1. Lift the handle.
2. Lift the handle locking tab.
3. Slide the handle forward and remove.
Courtesy of FORD MOTOR COMPANY

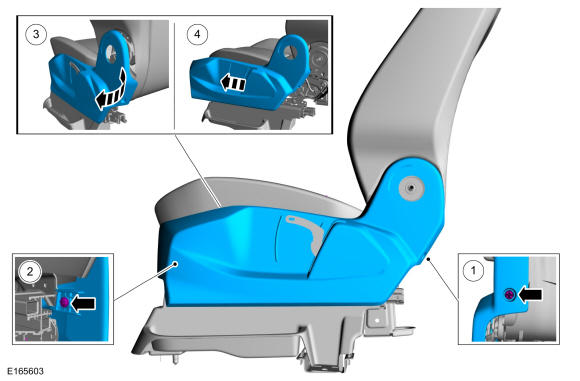

1. Remove the screw.
  Torque: 27 lb.in (3 Nm)
2. Remove the screw.
  Torque: 27 lb.in (3 Nm)
3. Rotate the back of the side shield.
4. Slide the side shield forward and remove the side shield.
Courtesy of FORD MOTOR COMPANY

All seats

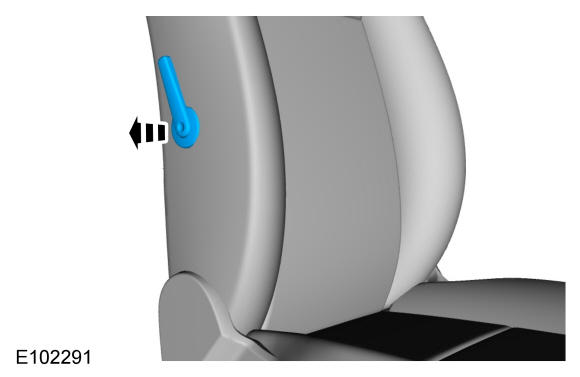

If equipped. Remove the manual lumbar handle.

Courtesy of FORD MOTOR COMPANY
NOTE: LH armrest shown, RH similar.

If equipped. Remove the armrest.
1. Position the armrest to an approximate 60 degree angle.
2. Pull the armrest outward to release.
Courtesy of FORD MOTOR COMPANY

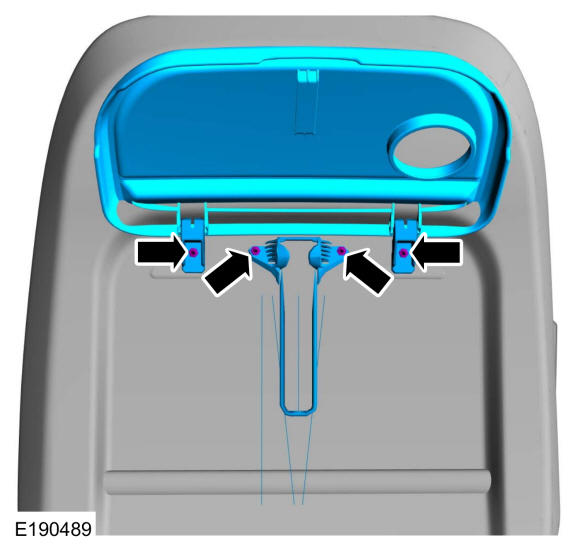

If equipped. Drill out the rivets and remove the folding tray. Use the General Equipment: Electric Drill

Courtesy of FORD MOTOR COMPANY
Release the backrest cover J-clips from under the seat.

Courtesy of FORD MOTOR COMPANY

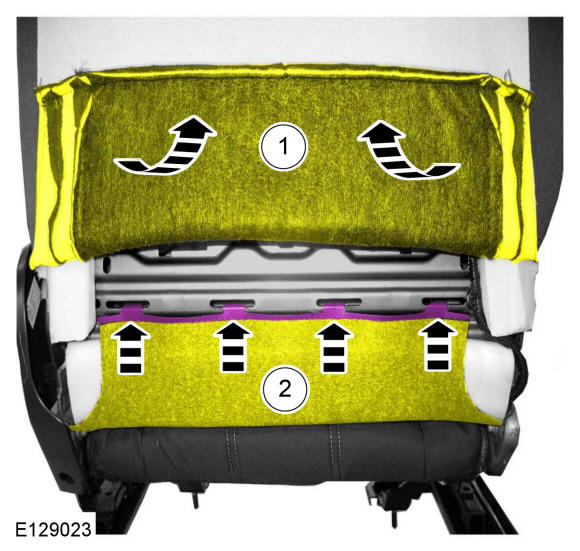

Release the backrest cover J-clips.
1. Invert the backrest cover.
2. Release the backrest cover J-clips.
Courtesy of FORD MOTOR COMPANY

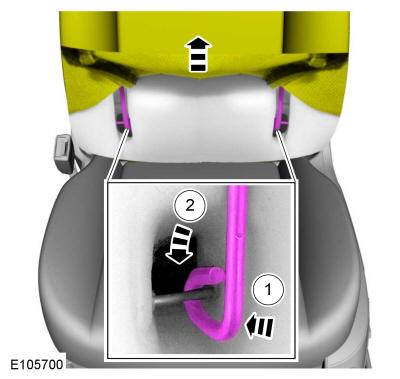

Partially invert the backrest cover and release the support wires from the backrest foam.
1. Press the backrest cover support wire inward.
2. Rotate the backrest cover support wire downward and release it from the backrest foam.
Courtesy of FORD MOTOR COMPANY

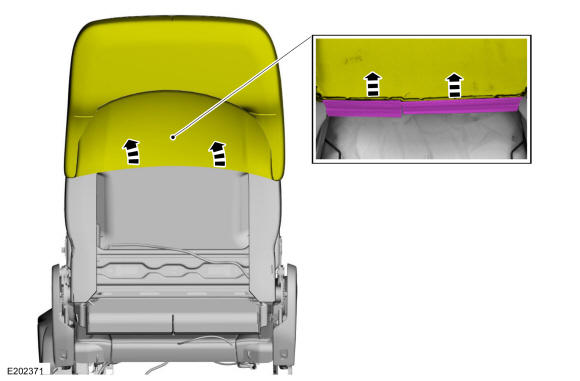

Continue to invert the backrest cover and release the backrest cover upper J-clip.

Courtesy of FORD MOTOR COMPANY

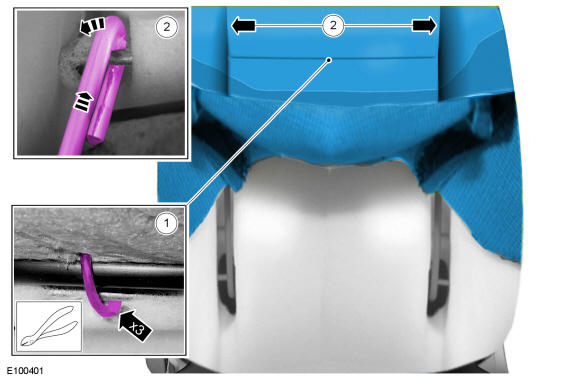

Remove the backrest cover.
1. NOTE: Follow the unique instruction or graphics for this step in installation.

  Remove the hog rings.
2. Push the backrest cover support wire upward and rotate to release it from the backrest foam.

Courtesy of FORD MOTOR COMPANY
