Front Seat Armrest: Removal

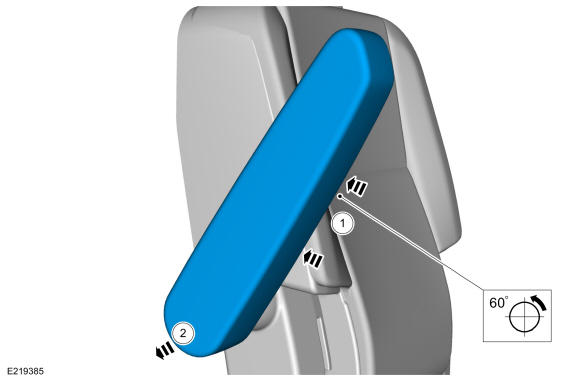

  1. NOTE: LH armrest shown, RH similar.

    Remove the armrest.

    1. Position the armrest to an approximate 60 degree angle.
    2. Pull the armrest outward to release.

GFD306213Courtesy of FORD MOTOR COMPANY
