Removal And Installation: Hood: Removal

NOTE: Removal steps in this procedure may contain installation details.

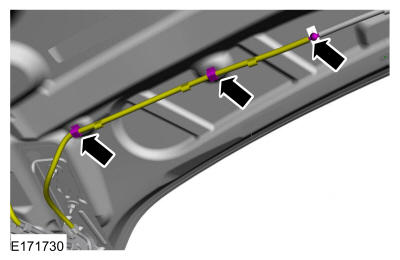

  1. Detach the windshield washer hose retainers and coupling.
    GFD305837Courtesy of FORD MOTOR COMPANY
  2. Remove the nuts and the hood.

    Torque: 97 lb.in (11 Nm)

GFD305838Courtesy of FORD MOTOR COMPANY
