Removal And Installation: Fender: Installation

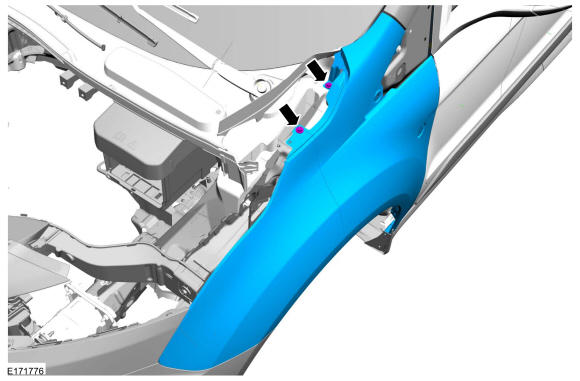

  1. NOTE: Only tighten the bolts finger tight at this stage.

    Position the fender on the vehicle and loosely install the bolts.

    GFD305834Courtesy of FORD MOTOR COMPANY

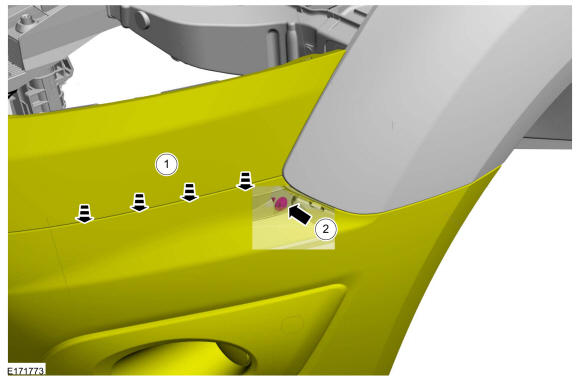

  2. NOTE: Only tighten the bolt finger tight at this stage.

    1. Separate the front bumper cover from the fender.
    2. Loosely install front fender bracket bolt.

    GFD305833Courtesy of FORD MOTOR COMPANY

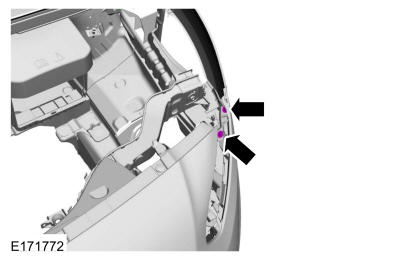

  3. NOTE: Only tighten the bolts finger tight at this stage.

    Loosely install the fender-to-bumper cover bolts.

    GFD305832Courtesy of FORD MOTOR COMPANY

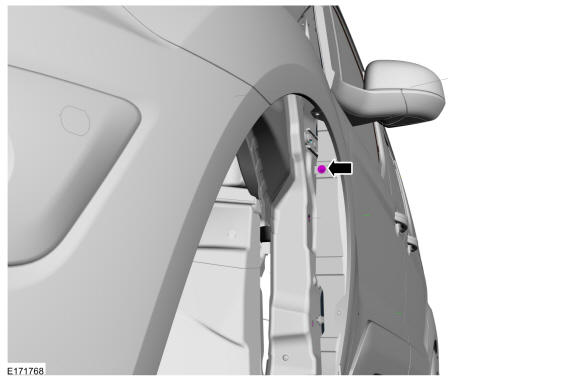

  4. NOTE: Only tighten the bolt finger tight at this stage.

    Loosely install the lower A-pillar bolt.

    GFD305831Courtesy of FORD MOTOR COMPANY
  5. NOTE: Only tighten the bolt finger tight at this stage.

    Loosely install the upper A-pillar bolt.

    GFD305830Courtesy of FORD MOTOR COMPANY
  6. NOTE: Only tighten the bolts finger tight at this stage.

    Loosely install the lower rear fender bolts.

    GFD305829Courtesy of FORD MOTOR COMPANY
  7. Adjust the fender to specification.
  8. Tighten all fender fasteners.

    Torque: 53 lb.in (6 Nm)

  9. To install, reverse the removal procedure.
