Engine Undershield

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

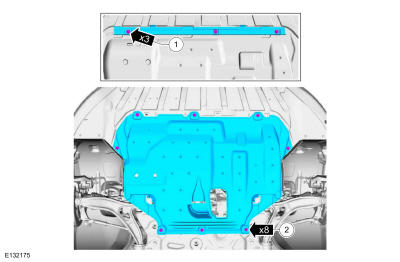

Engine Undershield

1. If equipped.
   1. Remove the screws and the deflector shield.
   2. Remove the screws and the engine undershield.

Courtesy of FORD MOTOR COMPANY
