Active Grille Shutter: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

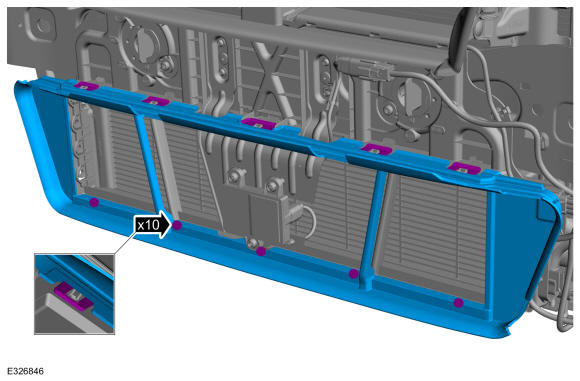

  2. Release the clips and remove the bottom air deflector.
    GFD305810Courtesy of FORD MOTOR COMPANY

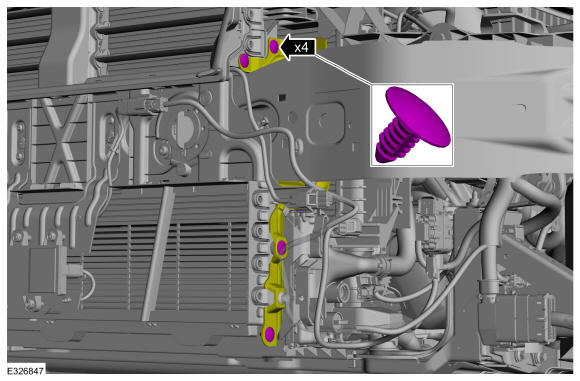

  3. On both sides Remove the pin-type retainers and position aside the radiator air deflector.
    GFD305811Courtesy of FORD MOTOR COMPANY

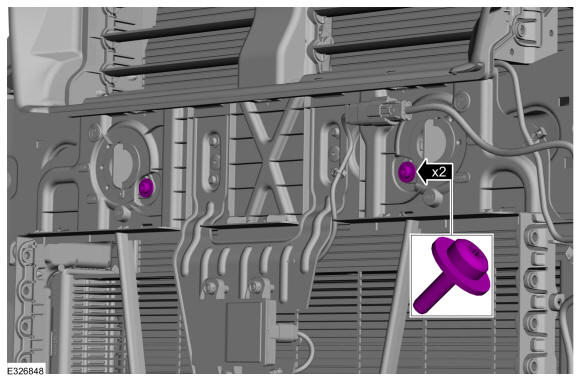

  4. Remove the pin-type retainers and position aside the radiator air deflector.
    GFD305812Courtesy of FORD MOTOR COMPANY

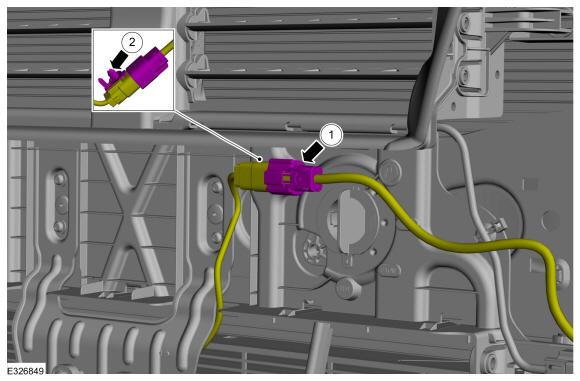

    1. Disconnect the electrical connector.
    2. Remove the pin type retainers and position aside the wiring harness.
    GFD305813Courtesy of FORD MOTOR COMPANY

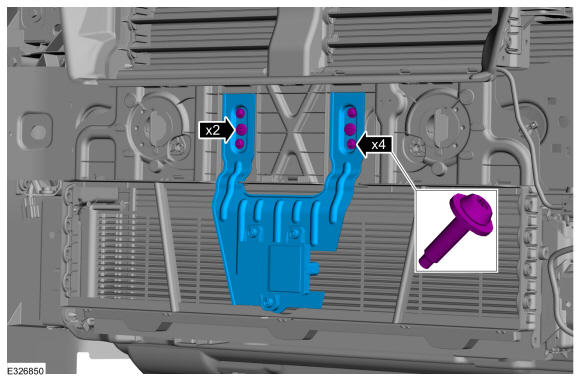

  6. Remove the fasteners and the CCM bracket.
    GFD305814Courtesy of FORD MOTOR COMPANY

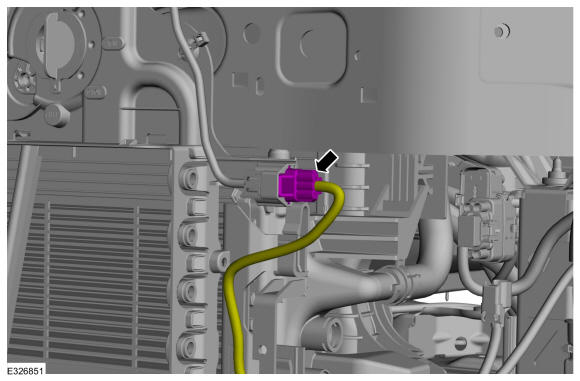

  7. Disconnect the active grille shutter electrical connector.
    GFD305815Courtesy of FORD MOTOR COMPANY

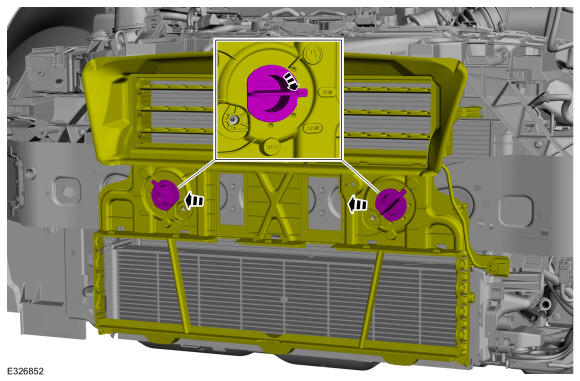

  8. Rotate the stow knobs from the LOCK position to the ASSEMBLE position and position the active grille shutter forward.
    GFD305816Courtesy of FORD MOTOR COMPANY

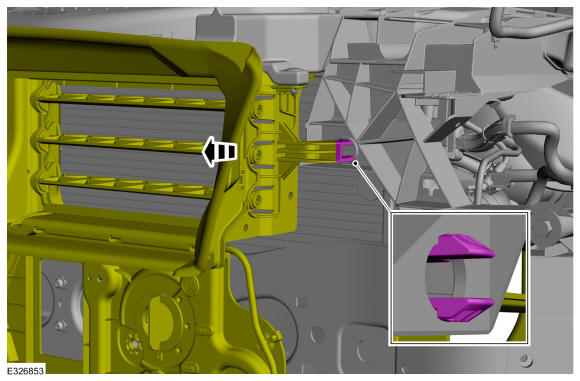

  9. On both sides. Release the retaining tab and position the active grille shutter forward.
    GFD305817Courtesy of FORD MOTOR COMPANY

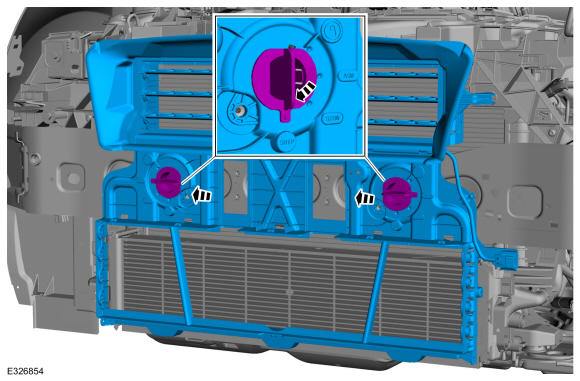

  10. On both sides. Rotate the stow knobs from the ASSEMBLE position to the SHIP position and remove the active grille shutter assembly.
GFD305818Courtesy of FORD MOTOR COMPANY
