Rear Bumper Cover: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the rear bumper cover upper screws.
    GFD306614Courtesy of FORD MOTOR COMPANY

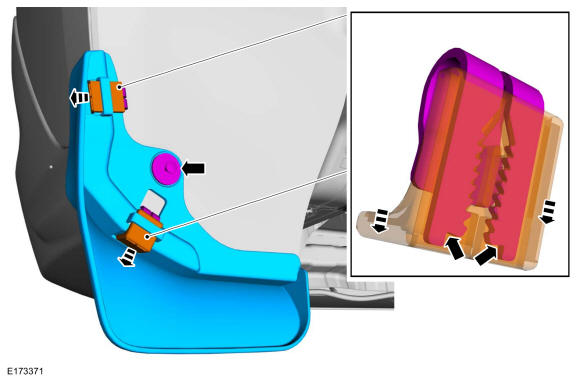

  3. Both sides, If equipped. Remove the push pin, release the tabs, remove the hook and mud flap.
    GFD306615Courtesy of FORD MOTOR COMPANY

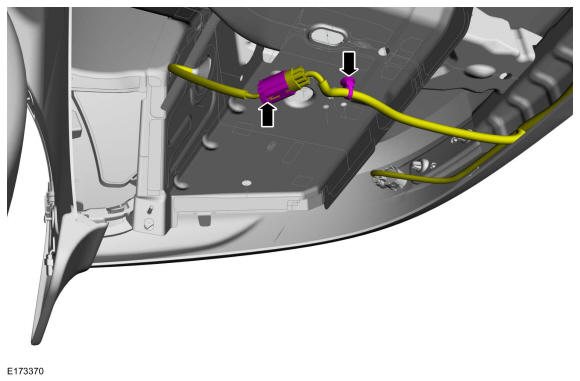

  4. If equipped. Disconnect the rear bumper cover electrical connector and detach the wiring retainer.
    GFD306616Courtesy of FORD MOTOR COMPANY

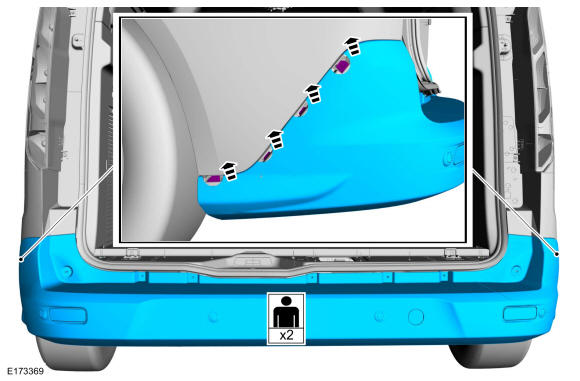

  5. Release the tabs and remove the rear bumper cover.
GFD306617Courtesy of FORD MOTOR COMPANY
