Front Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the headlamp assembly. Refer to: Headlamp Assembly .

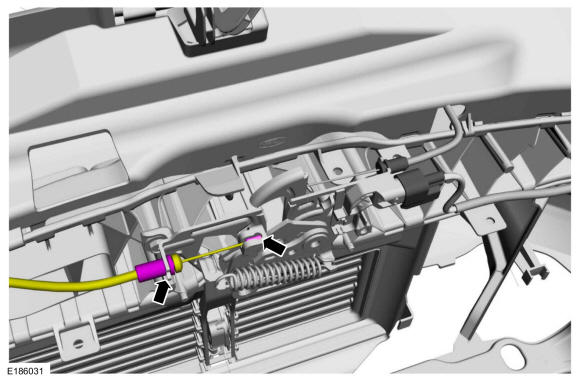

  3. Disconnect the hood safety latch cable and position aside.
    GFD306607Courtesy of FORD MOTOR COMPANY

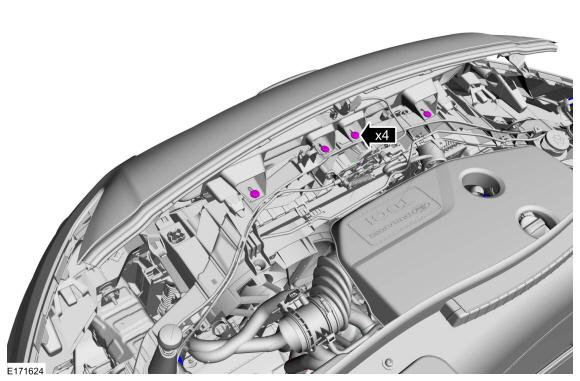

  4. Remove the screws.
    GFD306608Courtesy of FORD MOTOR COMPANY

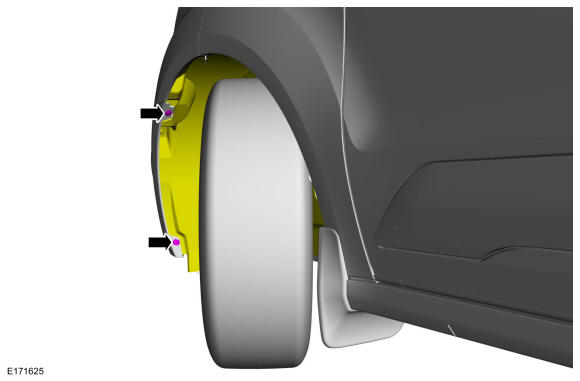

  5. On both sides. Remove the push pins and position the fender liner aside.
    GFD306609Courtesy of FORD MOTOR COMPANY

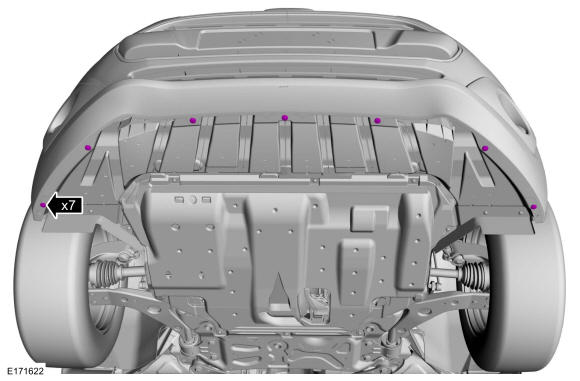

  6. Remove the radiator deflector screws. Use the General Equipment: Interior Trim Remover
    GFD306610Courtesy of FORD MOTOR COMPANY

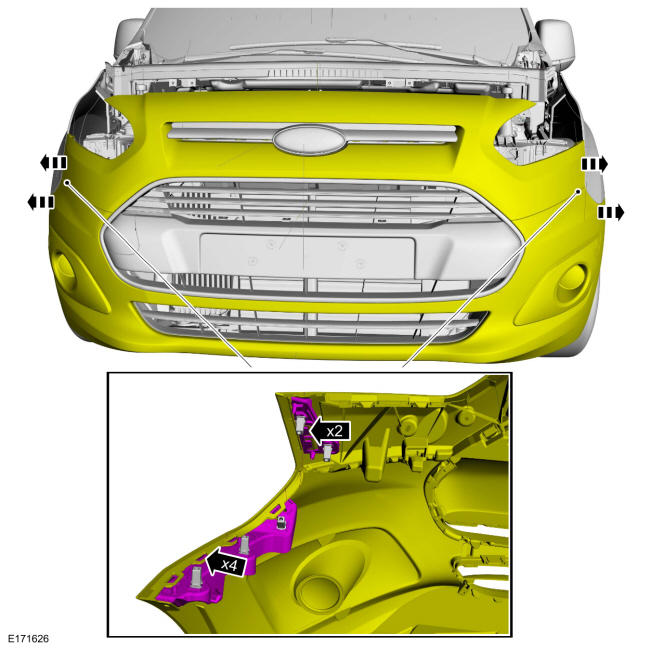

  7. Release the tabs and separate the outer edges of the front bumper cover assembly.
    GFD306611Courtesy of FORD MOTOR COMPANY

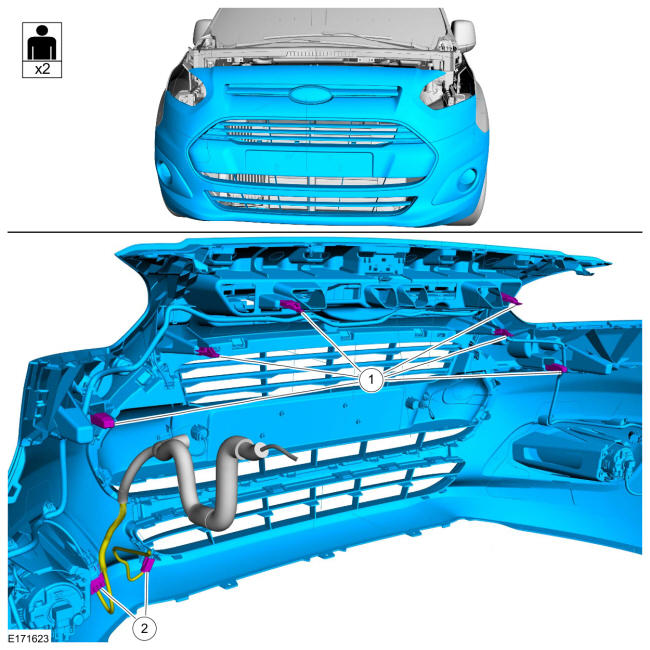

  8. Remove the front bumper cover.

    1. Release the tabs.
    2. If equipped. Disconnect the electrical connectors.

GFD306612Courtesy of FORD MOTOR COMPANY
