Rear Bumper Cover: Disassembly

  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

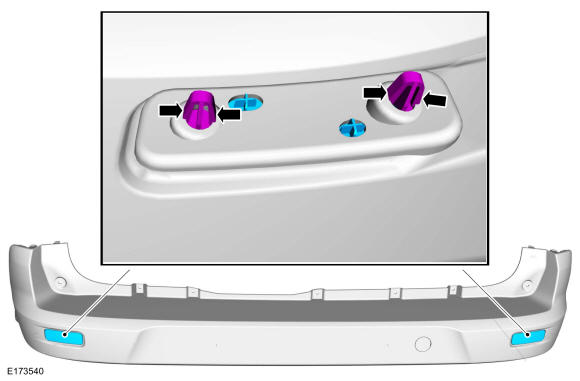

  2. Remove the rear bumper reflectors.
    GFD306632Courtesy of FORD MOTOR COMPANY

    Vehicles with rear parking aid

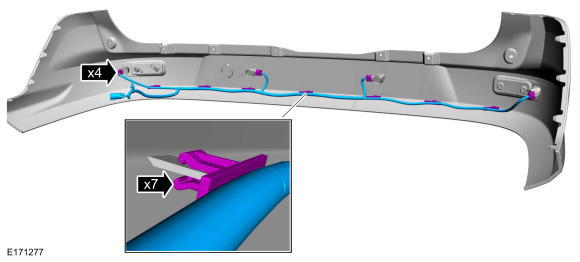

  3. Disconnect the park aid sensors and remove the rear bumper cover wiring harness.
    GFD306633Courtesy of FORD MOTOR COMPANY

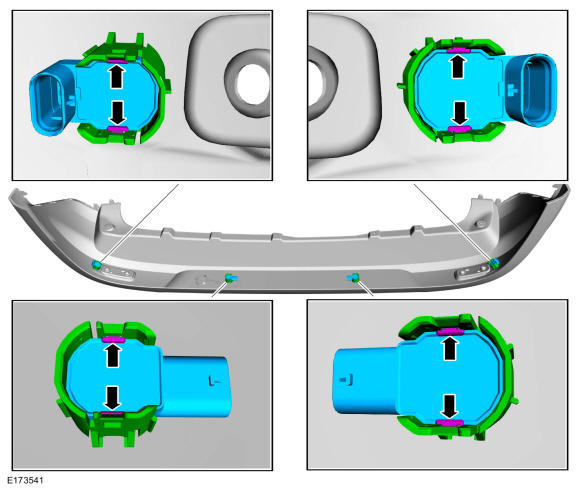

  4. NOTE: Pressure must not be applied to the outer face of the parking aid sensor.

    Remove the rear park aid sensors.

GFD306634Courtesy of FORD MOTOR COMPANY
