Front Bumper Cover: Disassembly

  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
  2. If equipped.

    1. Disconnect the front fog lamp electrical connectors.
    2. Disconnect the front parking aid electrical connectors.
    3. Detach the retainers and remove the electrical wire harness.

    GFD306618Courtesy of FORD MOTOR COMPANY

    Vehicles with front parking aid

  3. NOTE: Pressure must not be applied to the outer face of the parking aid sensor.

    Release the tabs and remove the front parking aid sensor from the bracket.

    GFD306619Courtesy of FORD MOTOR COMPANY

    All vehicles

  4. Remove the retainers and the hood seal.
    GFD306620Courtesy of FORD MOTOR COMPANY
  5. Remove the push pins. Use the General Equipment: Interior Trim Remover
    GFD306621Courtesy of FORD MOTOR COMPANY
  6. Release the tabs and remove the bumper reinforcement.
    GFD306622Courtesy of FORD MOTOR COMPANY
  7. Release the tabs, remove the tow hook cover, remove the upper radiator grille and the lower radiator grille.
    GFD306623Courtesy of FORD MOTOR COMPANY
  8. Release the tabs and remove the front bumper cover upper trim.
    GFD306624Courtesy of FORD MOTOR COMPANY
  9. Release the tabs and remove the lower bumper cover.
    GFD306625Courtesy of FORD MOTOR COMPANY

    Vehicles with front fog lamps

  10. Remove the screws and the front fog lamps.
    GFD306626Courtesy of FORD MOTOR COMPANY

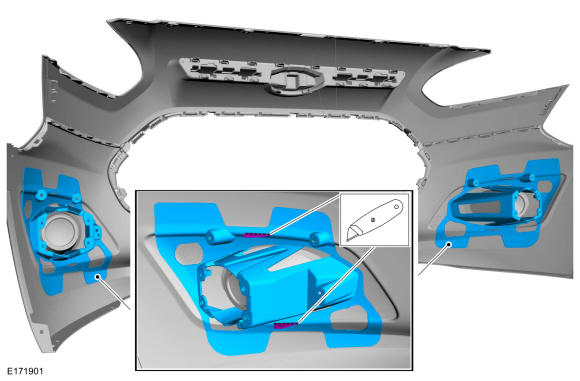

  11. Cut the sealing and remove the front fog lamp mounting assembly. Use the General Equipment: Knife
GFD306627Courtesy of FORD MOTOR COMPANY
