Removal And Installation: Liftgate: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .
  2. Disconnect the electrical connectors and detach the retainers.

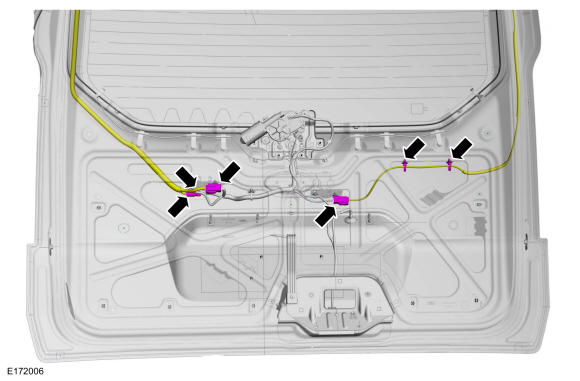

    GFD305937Courtesy of FORD MOTOR COMPANY
  3. On both sides.

    1. Remove the grommet.
    2. Route the harness out of the liftgate.

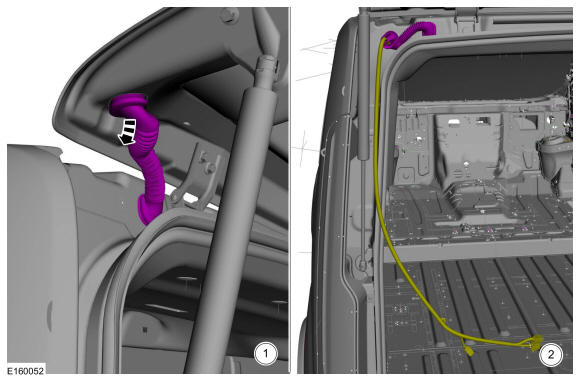

    GFD305938Courtesy of FORD MOTOR COMPANY
  4. NOTE: This step requires the aid of another technician.

    On both sides.

    1. Remove the clip.
    2. Position aside the liftgate strut.

    GFD305897Courtesy of FORD MOTOR COMPANY
  5. NOTE: This step requires the aid of another technician.

    Remove the bolts and the liftgate.

    Torque: 18 lb.ft (25 Nm)

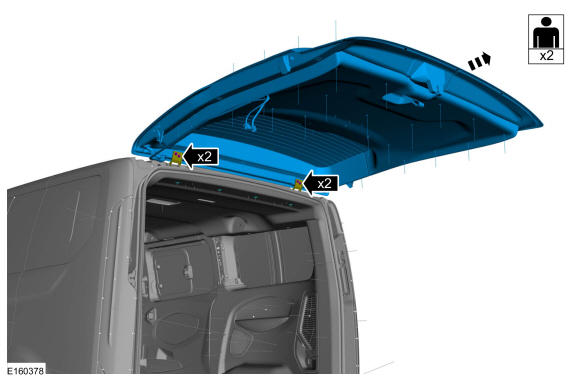

GFD305939Courtesy of FORD MOTOR COMPANY
