Rear Door Alignment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

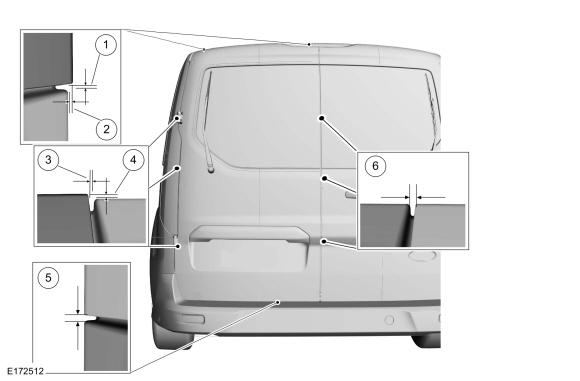

1. On both sides, Check the rear door-to-body dimensions.
   1. Dimension: 0.2756 ±0.0591 in (7 ±1.5 mm)
   2. Dimension: 0.0591 ±0.0551 in (1.5 ±1.4 mm)
   3. Dimension: 0.1575 ±0.0787 in (4 ±2 mm)
   4. Dimension: 0.0787 ±0.0591 in (2 ±1.5 mm)
   5. Dimension: 0.2362 ±0.1575 in (6 ±4 mm)
   6. Dimension: 0.2362 ±0.1575 in (6 ±4 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

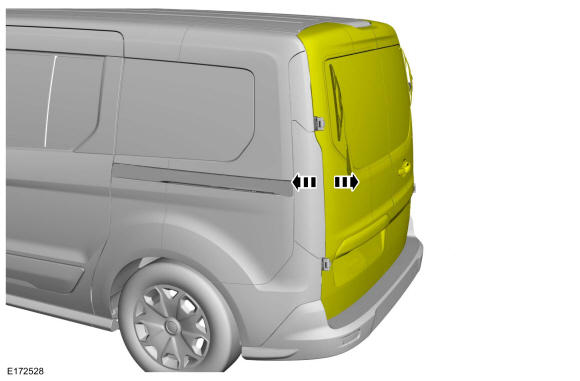

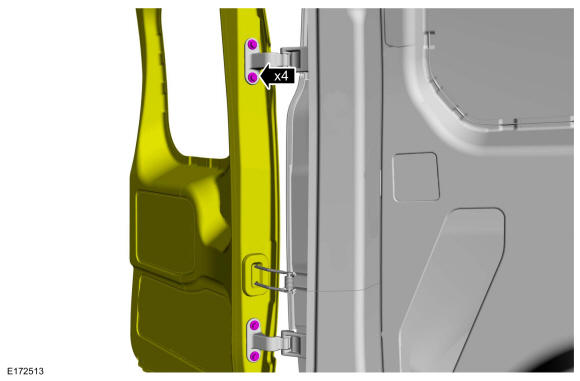

1. On both sides. Loosen the bolts enough to permit movement of the door. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

2. Loosen the lower striker assembly bolts. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

3. Loosen the upper striker assembly bolts. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

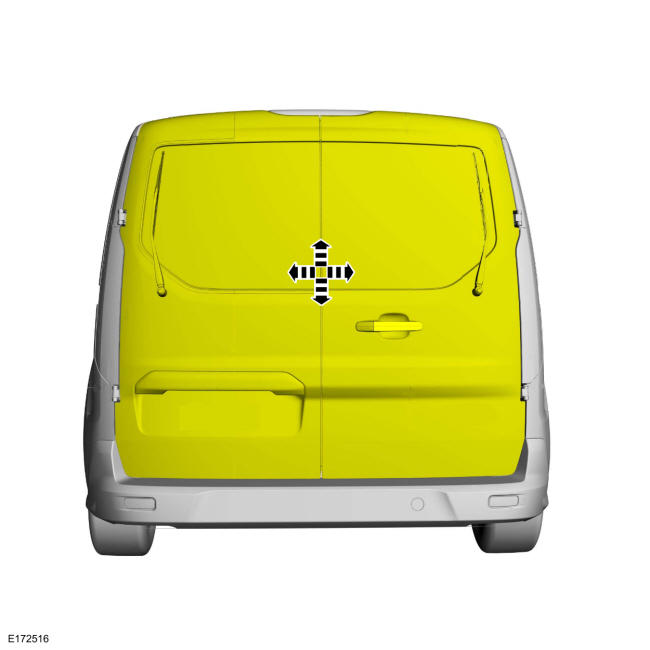

4. Adjust the door to specification.

   Courtesy of FORD MOTOR COMPANY

5. Tighten the lower striker assembly bolts.

   Torque: 20 lb.ft (27 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Tighten the upper striker assembly bolts.

   Torque: 20 lb.ft (27 Nm)

   Courtesy of FORD MOTOR COMPANY

7. On both sides. Tighten the door bolts.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Check the area for paintwork damage and repair if necessary.

Check

1. On both sides, check the body-to-rear door dimensions.
   1. Dimension: 0.2756 ±0.0591 in (7 ±1.5 mm)
   2. Dimension: 0.0591 ±0.0551 in (1.5 ±1.4 mm)
   3. Dimension: 0.1575 ±0.0787 in (4 ±2 mm)
   4. Dimension: 0.0787 ±0.0591 in (2 ±1.5 mm)
   5. Dimension: 0.2362 ±0.1575 in (6 ±4 mm)
   6. Dimension: 0.2362 ±0.1575 in (6 ±4 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1. Loosen the lower striker assembly bolts. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

2. Loosen the upper striker assembly bolts. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

3. Adjust the door to specification.

   Courtesy of FORD MOTOR COMPANY

4. Tighten the lower striker assembly bolts.

   Torque: 20 lb.ft (27 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Tighten the upper striker assembly bolts.

   Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY
