Liftgate Alignment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

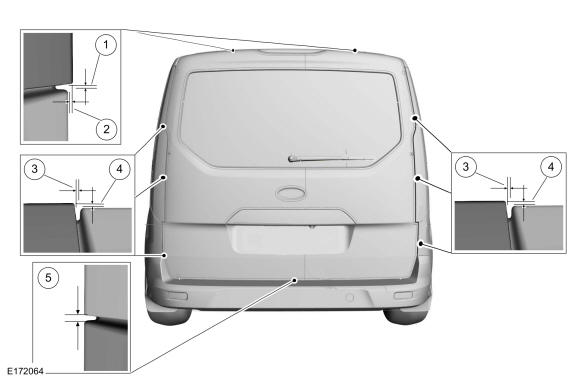

1. Check the liftgate-to-body dimensions.
   1. Dimension: 0.2756 ±0.0591 in (7 ±1.5 mm)
   2. Dimension: 0.0591 ±0.0551 in (1.5 ±1.4 mm)
   3. Dimension: 0.1575 ±0.0787 in (4 ±2 mm)
   4. Dimension: 0.0787 ±0.0591 in (2 ±1.5 mm)
   5. Dimension: 0.2362 ±0.1575 in (6 ±4 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

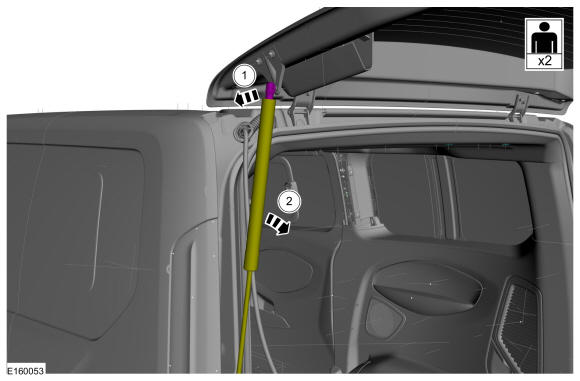

1. NOTE: This step requires the aid of another technician.

   On both sides.

   1. Remove the clip.
   2. Position aside the liftgate strut.

   Courtesy of FORD MOTOR COMPANY

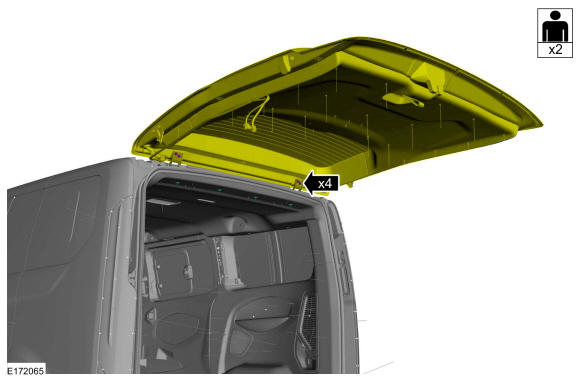

2. NOTE: This step requires the aid of another technician.

   Loosen the bolts enough to permit movement of the liftgate. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

3. Loosen the liftgate striker bolts. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

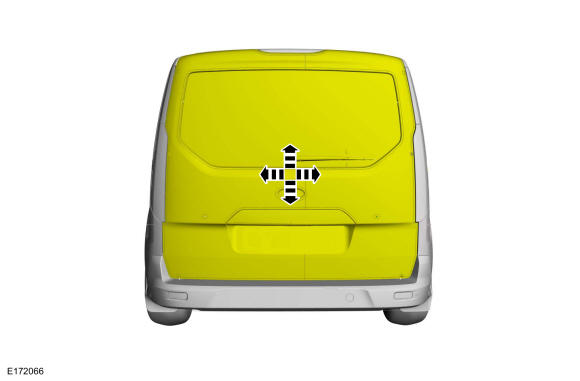

4. Adjust the liftgate to specification.

   Courtesy of FORD MOTOR COMPANY

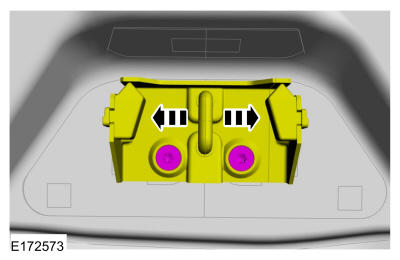

5. Adjust the liftgate striker.

   Courtesy of FORD MOTOR COMPANY

6. Tighten the liftgate striker bolts.

   Torque: 18 lb.ft (24 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: This step requires the aid of another technician.

   Tighten the bolts.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Check the area for paintwork damage and repair if necessary.
9. NOTE: This step requires the aid of another technician.

   On both sides.

   1. Install the strut.
   2. Install the clip.

Courtesy of FORD MOTOR COMPANY

Check

1. Check the body-to-liftgate dimensions.
   1. Dimension: 0.2756 ±0.0591 in (7 ±1.5 mm)
   2. Dimension: 0.0591 ±0.0551 in (1.5 ±1.4 mm)
   3. Dimension: 0.1575 ±0.0787 in (4 ±2 mm)
   4. Dimension: 0.0787 ±0.0591 in (2 ±1.5 mm)
   5. Dimension: 0.2362 ±0.1575 in (6 ±4 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

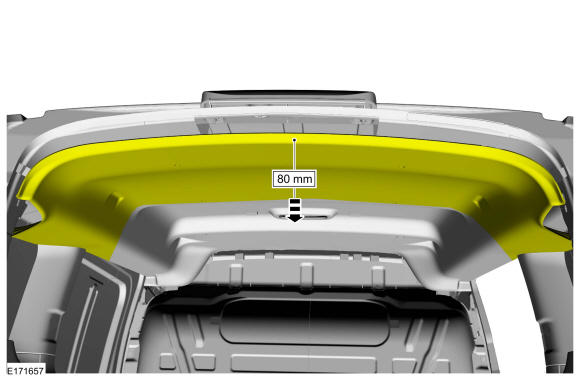

2. Lower the headliner.

   Courtesy of FORD MOTOR COMPANY

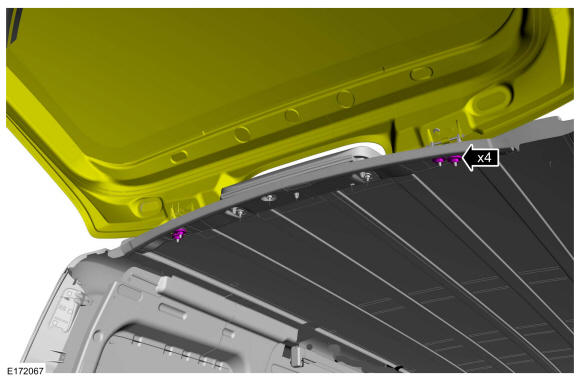

3. Loosen the nuts enough to permit movement of the liftgate. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

4. Loosen the liftgate striker bolts. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

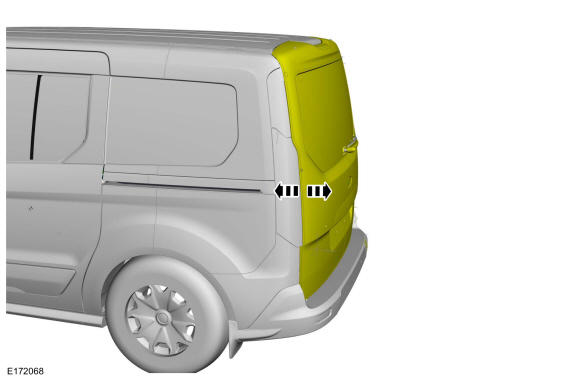

5. Adjust the liftgate to specification.

   Courtesy of FORD MOTOR COMPANY

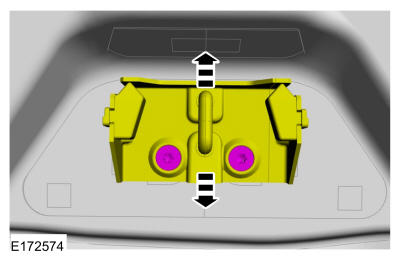

6. Adjust the liftgate striker.

   Courtesy of FORD MOTOR COMPANY

7. Tighten the nuts.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Tighten the liftgate striker bolts.

   Torque: 18 lb.ft (24 Nm)

   Courtesy of FORD MOTOR COMPANY

9. To install, reverse the removal procedure.
10. On both sides. Remove the spacer.

    Courtesy of FORD MOTOR COMPANY

11. On both sides. Remove the bump stop cover.

    Courtesy of FORD MOTOR COMPANY

12. On both sides. Loosen the screw. Loosen: 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

13. On both sides. Adjust the bump stop.

    Courtesy of FORD MOTOR COMPANY

14. Carefully close the liftgate.

    Courtesy of FORD MOTOR COMPANY

15. On both sides. Tighten the screw.

    Torque: 35 lb.in (4 Nm)

    Courtesy of FORD MOTOR COMPANY

16. On both sides. Install the bump stop cover.

    Courtesy of FORD MOTOR COMPANY

17. On both sides. Install the spacer.

Courtesy of FORD MOTOR COMPANY
