Door Latch Lubrication

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Flat-Bladed Screwdriver

Materials

Name	Specification
Motorcraft® Multi-Purpose Grease SprayXL-5-A	ESB-M1C93-B

Activation

NOTE: Typical left front door shown, others similar.

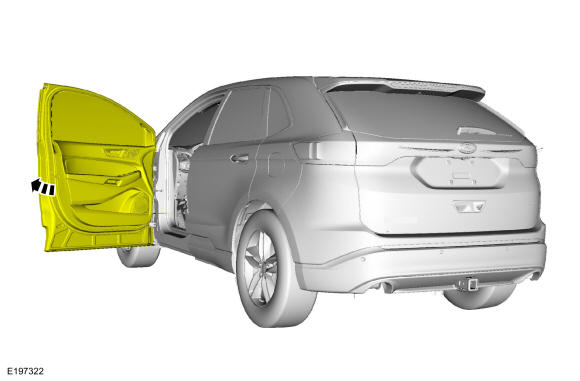

Open the door.

Courtesy of FORD MOTOR COMPANY

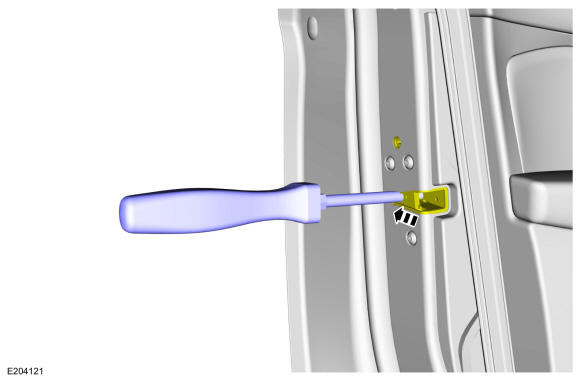

Using a flat blade screwdriver, fully close the latch (2 clicks). Use the General Equipment: Flat-Bladed Screwdriver

Courtesy of FORD MOTOR COMPANY
NOTE: Do not over-lubricate the latch. Using excessive grease may damage the internal lock motor.

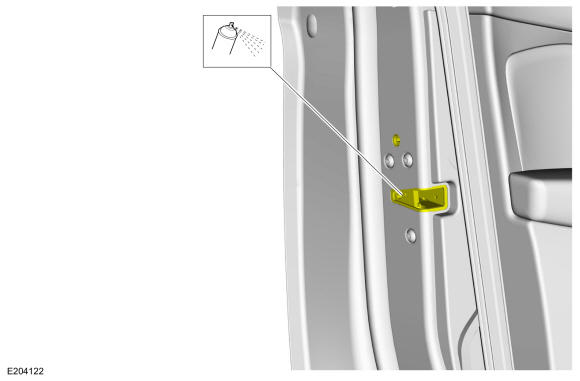

Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.

Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY
NOTE: Some exterior door handles are operated mechanically while other exterior door handles are operated electronically.

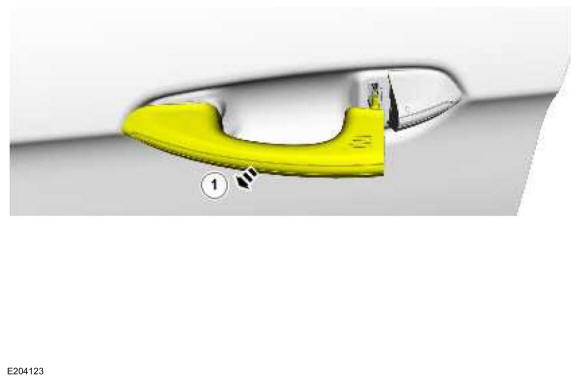

Open the latch using the exterior door handle.

Courtesy of FORD MOTOR COMPANY

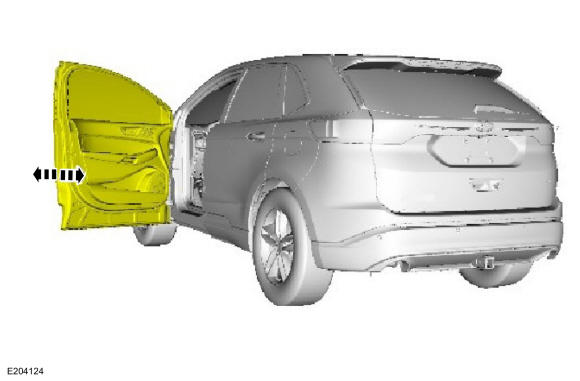

Open and close the door several times to circulate the lubricant inside the latch.

Courtesy of FORD MOTOR COMPANY
Open the door.

Courtesy of FORD MOTOR COMPANY

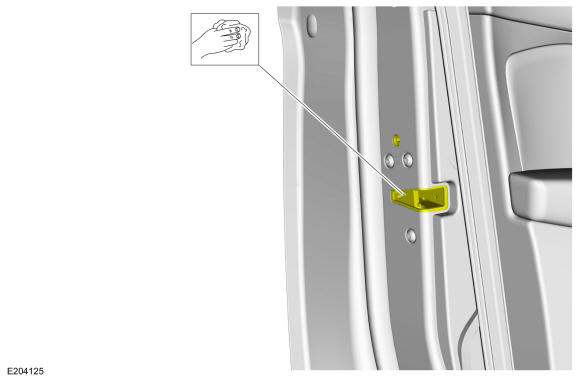

Wipe off any excess grease.

Courtesy of FORD MOTOR COMPANY
