Windshield Wiper Pivot Arm: Removal

NOTE: LH side shown, RH side similar.

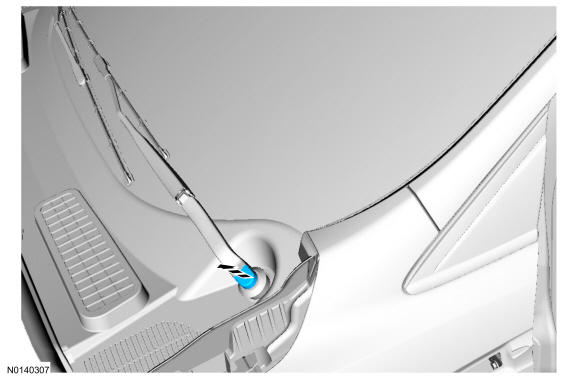

  1. Remove windshield wiper pivot arm nut cover.
    GFD306591Courtesy of FORD MOTOR COMPANY

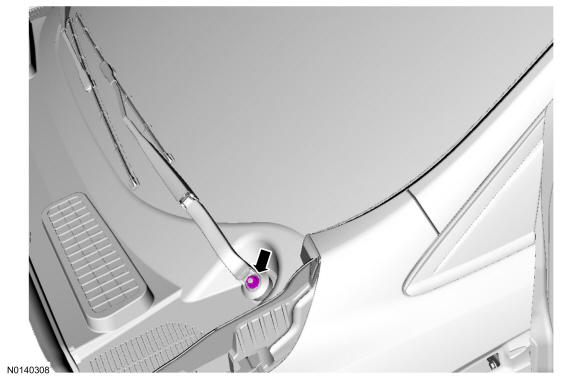

  2. Remove windshield wiper pivot arm nut.
    GFD306592Courtesy of FORD MOTOR COMPANY

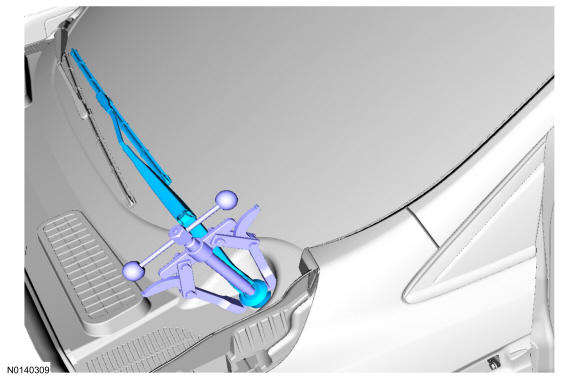

  3. Remove the wiper pivot arm. Use the General Equipment: Two Leg Puller
GFD306593Courtesy of FORD MOTOR COMPANY
