Windshield Washer Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the underbody shield.
- If equipped. Remove the retainers and the shield plate.
- If equipped. Remove the retainers and the underbody shield.
Courtesy of FORD MOTOR COMPANY
Remove the retainers, the bolts and the radiator undershield.

Courtesy of FORD MOTOR COMPANY
NOTE: Collect the washer fluid for reuse.

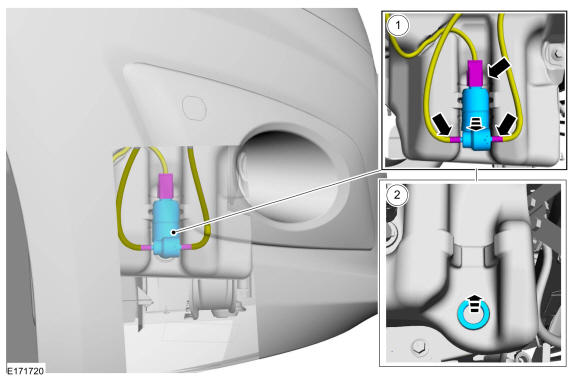

Lubricate the grommet before installing the washer pump. Remove the washer pump.
1. Disconnect the electrical connector and the washer hoses.
2. Remove the washer pump grommet.

Courtesy of FORD MOTOR COMPANY
