Rear Window Wiper Pivot Arm: Removal

Vehicles with liftgate

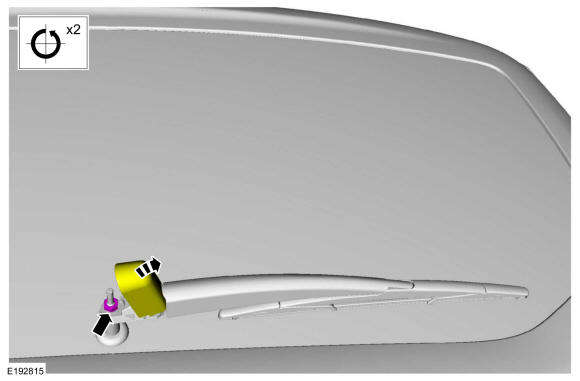

1. NOTE: Make sure the motor is in the park position.

   Open the wiper pivot arm nut cover and loosen the nut. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

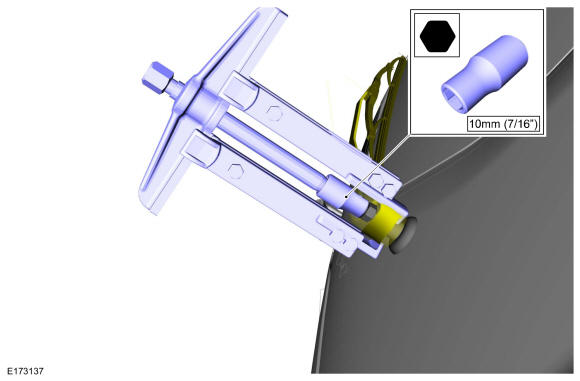

2. Using a suitable 2-leg puller and a 10mm socket, pull the rear window wiper pivot arm loose. Use the General Equipment: Two Leg Puller

   Courtesy of FORD MOTOR COMPANY

3. Remove the nut and the rear window wiper pivot arm.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with rear doors

4. NOTE: Make sure the motor is in the park position.

   Open the wiper pivot arm nut cover and loosen the nut. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

5. Using a suitable 2-leg puller and a 10mm socket, pull the rear window wiper pivot arm loose. Use the General Equipment: Two Leg Puller

   Courtesy of FORD MOTOR COMPANY

6. Remove the nut and the rear window wiper pivot arm.

Courtesy of FORD MOTOR COMPANY
