Rear Window Wiper Pivot Arm: Installation

Vehicles with rear doors

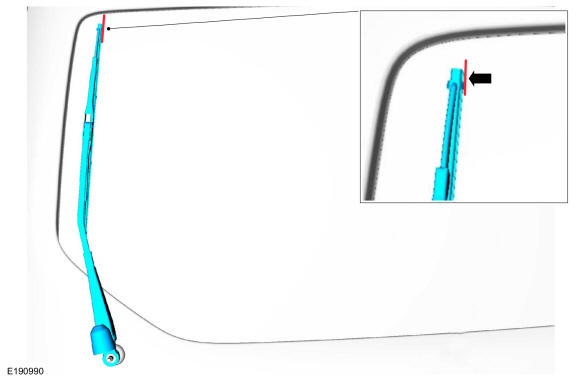

1. Install the rear window wiper pivot arm and align with the window mark.

   Courtesy of FORD MOTOR COMPANY

2. Install the rear window wiper pivot arm nut.

   Torque: 133 lb.in (15 Nm)

   Courtesy of FORD MOTOR COMPANY

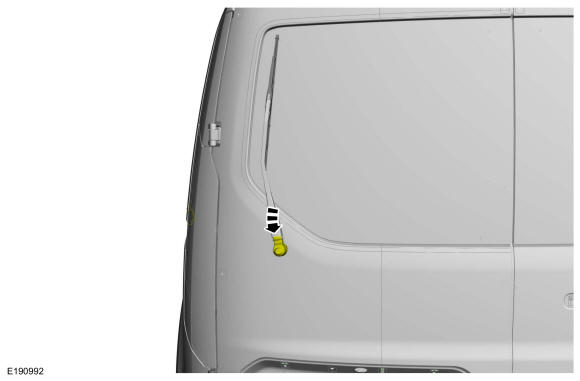

3. Close the wiper pivot arm nut cover.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with liftgate

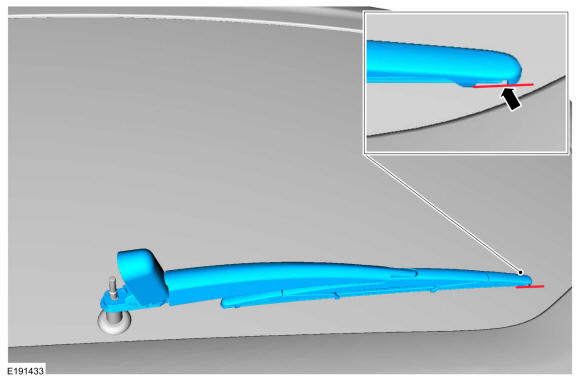

4. Install the rear window wiper pivot arm and align with the window mark.

   Courtesy of FORD MOTOR COMPANY

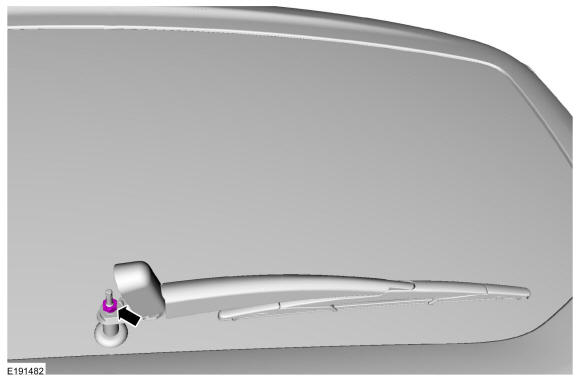

5. Install the rear window wiper pivot arm nut.

   Torque

   : 133 lb.in (15 Nm)

   Courtesy of FORD MOTOR COMPANY

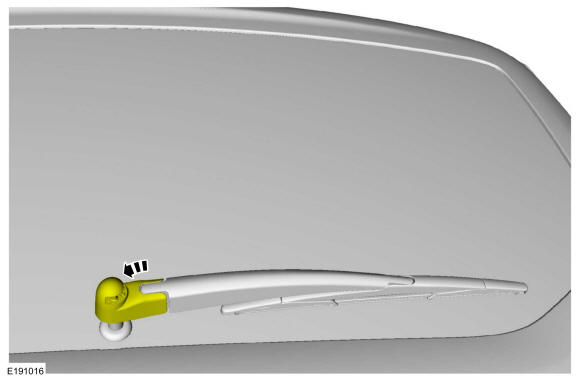

6. Close the wiper pivot arm nut cover.

Courtesy of FORD MOTOR COMPANY
