Steering Column Multifunction Switch LH: Removal

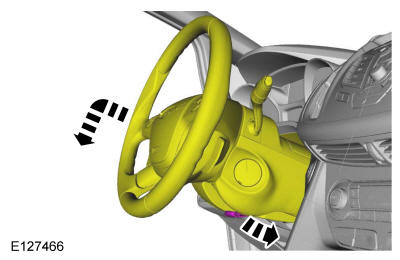

  1. Position the steering column in the full forward/down position.
    GFD303938Courtesy of FORD MOTOR COMPANY

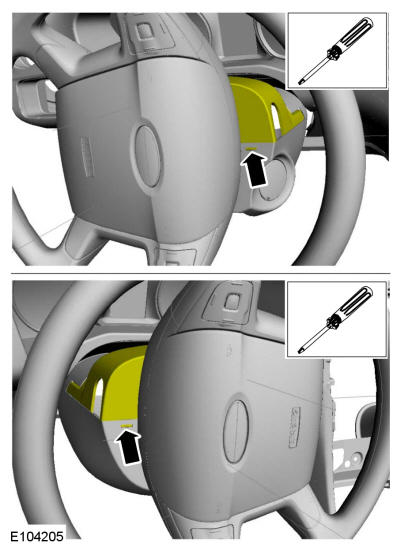

  2. Rotate the steering wheel and release the retainers. Use the General Equipment: Flat Headed Screw Driver
    GFD303947Courtesy of FORD MOTOR COMPANY

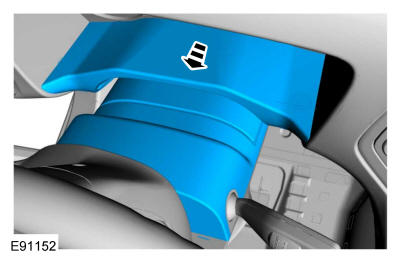

  3. Slide the upper steering column shroud forward and remove.
    GFD303949Courtesy of FORD MOTOR COMPANY

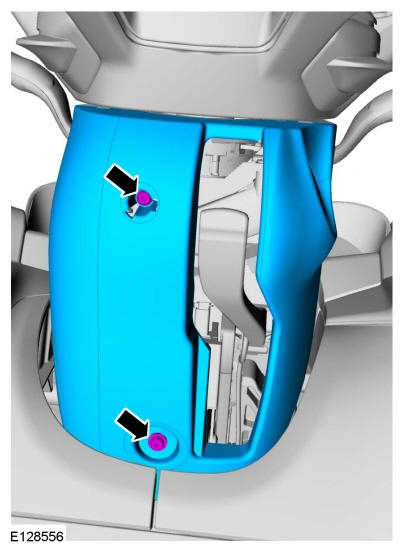

  4. Remove the retainers and the lower steering column shroud.
    GFD303941Courtesy of FORD MOTOR COMPANY

    Vehicles with lane departure warning

  5. NOTE: Make sure that the component terminals are not bent or damaged.

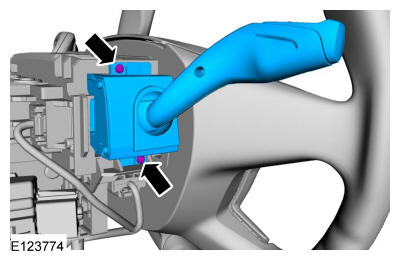

    Remove the retainers and the LH steering column multifunction switch

    GFD303950Courtesy of FORD MOTOR COMPANY

    Vehicles without lane departure warning

  6. NOTE: Make sure that the component terminals are not bent or damaged.

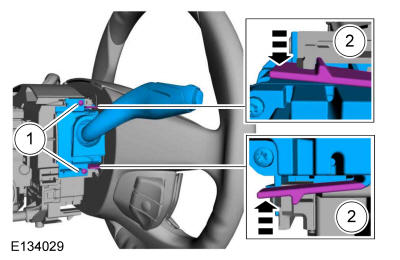

    1. Remove the retainers.
    2. Release the tabs and the LH steering column multifunction switch.

GFD303951Courtesy of FORD MOTOR COMPANY
