Front Fog Lamp Adjustment (Procedure 1)

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Adjustment

1. NOTE: Make sure that the tire pressures are to specification and that the vehicle is unladen.
   NOTE: Make sure that the vehicle is standing on a level surface.

   Ensure that the adjustment is made with the suspension set up.

2. Set the suspension at normal ride height. Refer to the Owner's Literature.
3. NOTE: Always follow the manufacturer's instructions when handling the equipment.

   Set the measuring screen of the beam setting equipment to the correct front fog lamp adjustment setting. Refer to: Specifications . Use the General Equipment: Headlamp Beam Setter

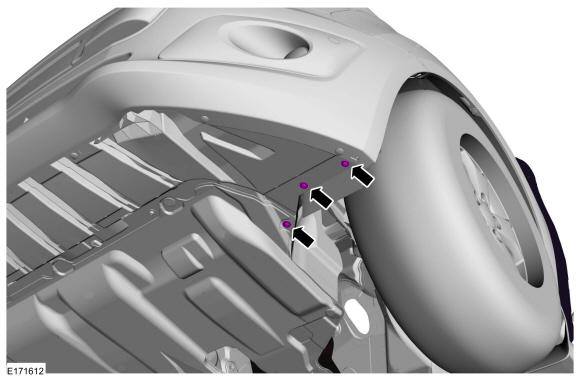

4. Remove the screws.

   Courtesy of FORD MOTOR COMPANY

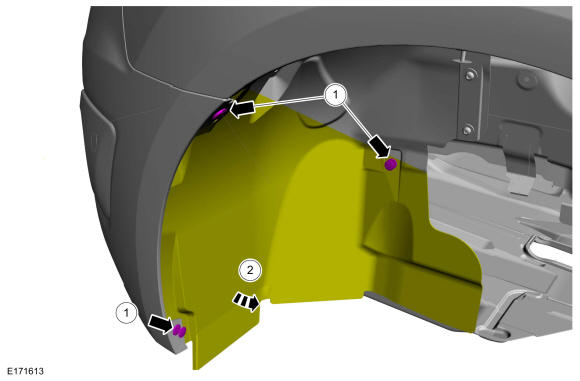

5. Remove the push pins and position aside the fender splash shield.

   Courtesy of FORD MOTOR COMPANY

6. Turn on the front fog lamps.

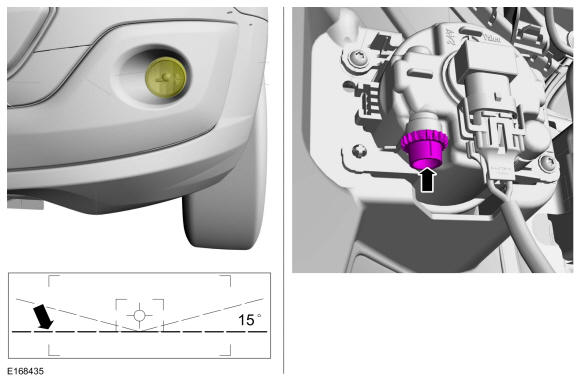

7. Adjust the fog lamp so that the cut-off line touches the horizontal line.

Courtesy of FORD MOTOR COMPANY
