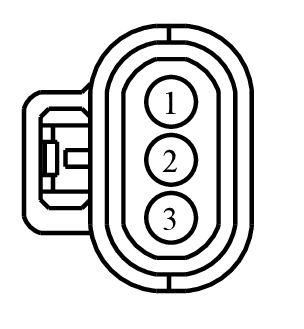

Connector End View (C1431) - FRONT OUTER PARKING AID SENSOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1431	FRONT OUTER PARKING AID SENSOR RH	BK	15K867	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP06 (VT-GY)	22	CTRL MOD. - PARKING AID # SENSORS FRONT	N/A
2	VMP13 (BU-OG)	22	SENSOR - PARKING AID # FRONT # (RIGHT OUTER)	N/A
3	RMP06 (YE-OG)	22	CTRL MOD. - PARKING AID # SENSORS FRONT	N/A

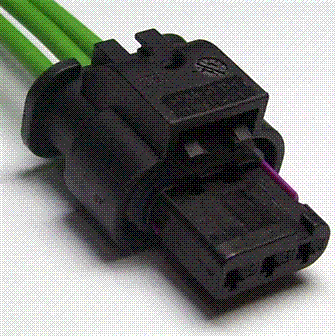

Available Pigtail Kits

Pigtail Kit Part Number WPT-1287

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-YA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Sensor - Front Park Aid (FPA)
• Sensor - Reverse Park Aide (RPA)
