Connector End View (C3064) - REAR PASSENGER POWER OUTLET SOCKET

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3064	REAR PASSENGER POWER OUTLET SOCKET	BK	15K857	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD311 (BK)	12	GROUND - TUNNEL # 2ND STUD	N/A
2	CBP19 (VT-RD)	12	FUSE - 19 OR CIRCUIT BREAKER	N/A

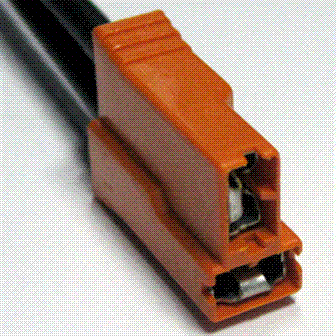

Available Pigtail Kits

Pigtail Kit Part Number WPT-1158

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ACAB

Gauge:

12

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Cigar Lighter
• Power Point
