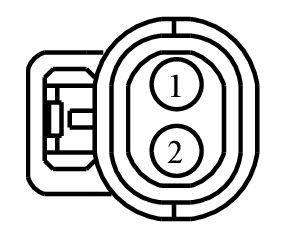

Connector End View (C1682) - EXHAUST GAS RECIRCULATION (EGR) COOLER BYPASS VALVE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1682 | EXHAUST GAS RECIRCULATION (EGR) COOLER BYPASS VALVE | BK | 12A690 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 95BG-14474-TAA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE720 (GN-WH) | 20 | SENSOR - EXHAUST GAS RECIRCULATION THROTTLE POSITION | 95BG-14474-TAA | ||||
| 2 | CBB12 (GN-WH) | 20 | FUSE - 12 OR CIRCUIT BREAKER | 95BG-14474-TAA | ||||
