Connector End View (C1617L) - HIGH CURRENT BATTERY JUNCTION BOX (BJB)

Connector: Description Color Harness Base Part # Service Pigtail
C1617L HIGH CURRENT BATTERY JUNCTION BOX (BJB) BK 14K733 part# N/A Not Available

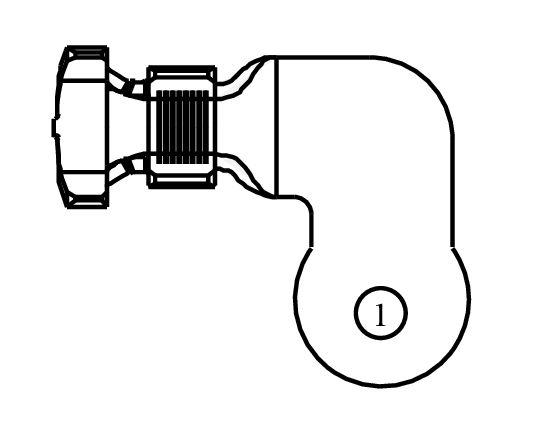

GFDWR19329Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SDC02 (RD) 2 BATTERY- # PLUS N/A
