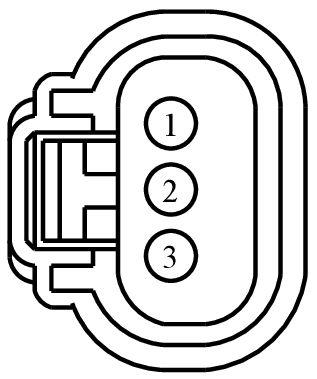

Connector End View (C435) - FUEL TANK PRESSURE (FTP) TRANSDUCER SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C435	FUEL TANK PRESSURE (FTP) TRANSDUCER SENSOR	BK	14A411	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE922 (VT-GN)	20	SENSOR - WATER IN FUEL	N/A
2	RE230 (WH-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)	N/A
3	LE230 (BN-BU)	20	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE	N/A

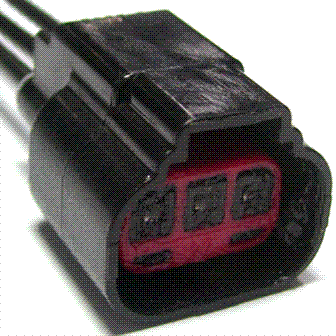

Available Pigtail Kits

Pigtail Kit Part Number WPT-990

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ZB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Turbine Shaft Speed
• Switch - Fuel Delivery Pressure
