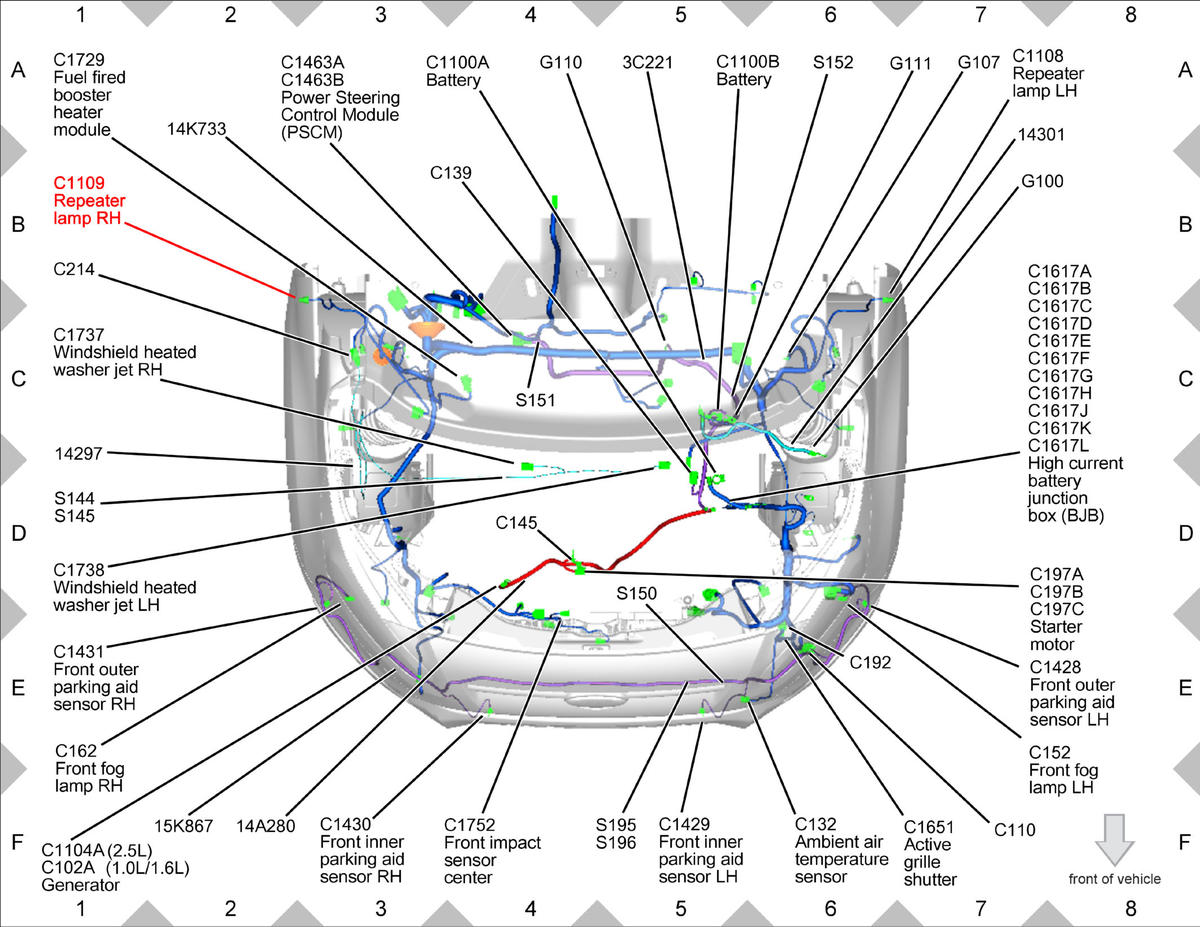

Home >> Ford >> 2018 >> Transit Connect XL, Van Cargo >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors >> Component Location Charts By Connectors >> C1109 Front RH Side of Vehicle
