Oil Cooler: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the bolts and the underbody shield.
    GFD304095Courtesy of FORD MOTOR COMPANY

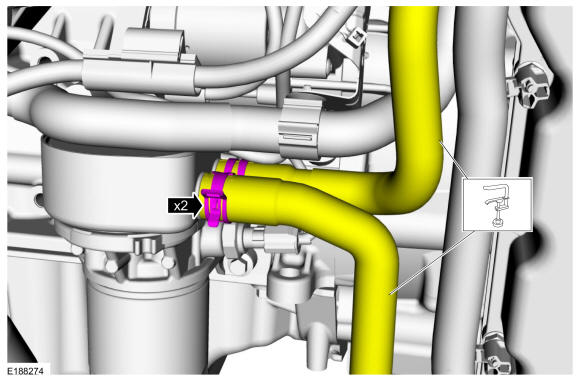

  3. Install hose clamps and disconnect the oil cooler coolant hoses. Use the General Equipment: Hose Clamp(s). Use the General Equipment: Hose Clamp Remover/Installer
    GFD304096Courtesy of FORD MOTOR COMPANY

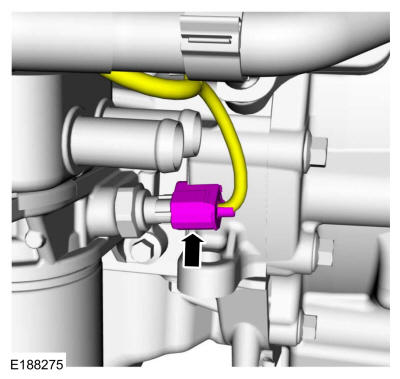

  4. Disconnect the oil pressure switch.
    GFD304097Courtesy of FORD MOTOR COMPANY

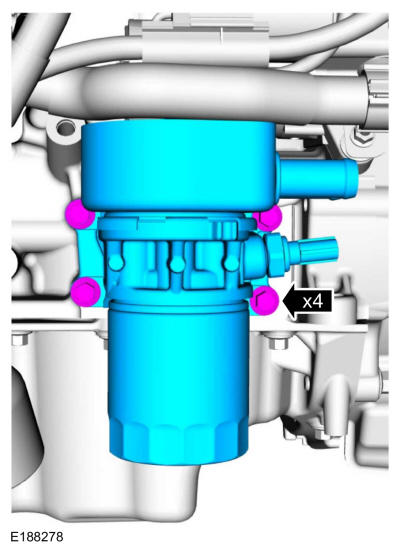

  5. Remove the bolts and the oil cooler assembly.

    Torque: 18 lb.ft (25 Nm)

    GFD304098Courtesy of FORD MOTOR COMPANY

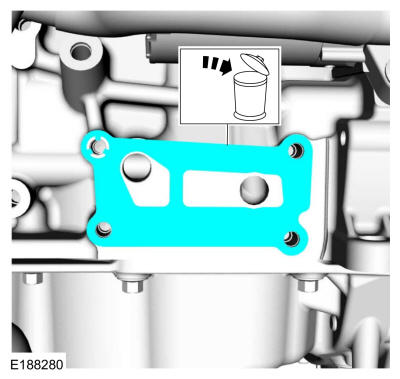

  6. Remove and discard the oil filter adapter gasket.
    GFD304099Courtesy of FORD MOTOR COMPANY
  7. NOTE: Be prepared to collect escaping fluids.
    NOTE: The gasket is to be reused unless damaged.

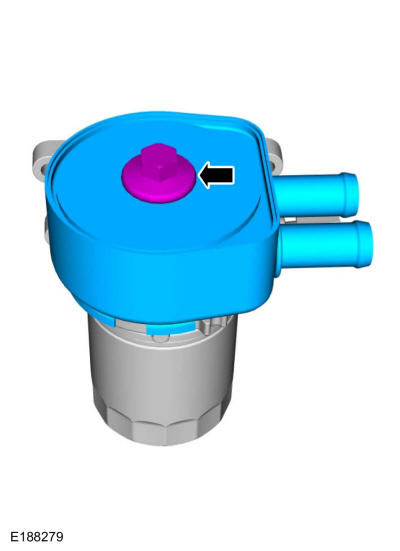

    Position the oil cooler assembly in a soft jawed vise, remove the bolt and the oil cooler.

    Torque: Stage 1: 17 lb.ft (23 Nm) Stage 2: 90°

GFD304100Courtesy of FORD MOTOR COMPANY
