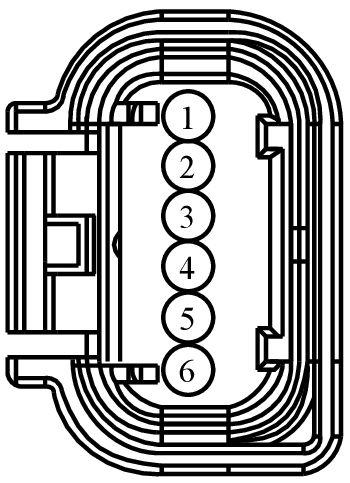

Connector End View (C4357) - REAR PARKING AID CAMERA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4357	REAR PARKING AID CAMERA	BK	17N400/10E998	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMP10 (BK)	22	CTRL MOD. - PARKING AID # SOUNDER REAR	Liftgate	N/A
1	CMP10 (WH)	22	CTRL MOD. - PARKING AID # SOUNDER REAR	N/A
2	VMP35 (WH-BU)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
2	VMP35 (BK)	22	CAMERA - SIDE 360 RIGHT VIDEO-	Liftgate	N/A
3	RMP31 (VT-GN)	22	CTRL MOD. - PARKING AID # SOUNDER REAR	Liftgate	N/A
3	RMP31 (GN)	22	CTRL MOD. - PARKING AID # SOUNDER REAR	N/A
4	VMP31 (BU)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
5	GD338 (BK-WH)	22	GROUND - TUNNEL # 2ND STUD	N/A
5	GD338 (BK)	22	GROUND - TUNNEL # 2ND STUD	Liftgate	N/A
6	DMP31 (*)	22	CTRL MOD. - NAVIGATION # VIDEO	N/A

Available Pigtail Kits

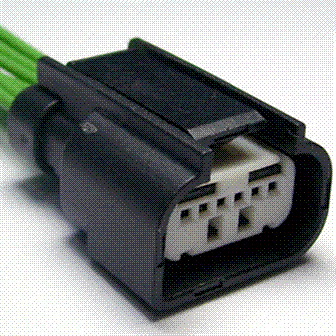

Pigtail Kit Part Number WPT-1556

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEB

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Front
• Camera - Reverse Park Aid

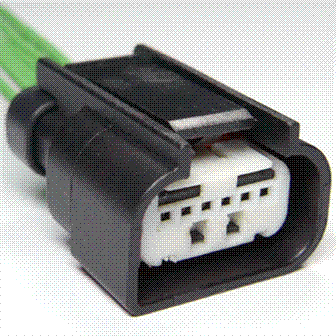

Pigtail Kit Part Number WPT-1280

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
