Connector End View (C3700) - MEDIA HUB

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3700	MEDIA HUB	BK	15K857	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME67 (VT-GY)	22	SWITCH - REDUNDANT AUDIO	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RME67 (BN-WH)	22	SWITCH - CONTACT PLATE SLIDING DOOR RIGHT # SPEAKER SLIDING DOOR	N/A

Available Pigtail Kits

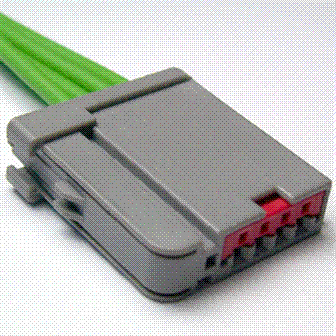

Pigtail Kit Part Number WPT-1239

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Compass
