Connector End View (C152) - FRONT FOG LAMP LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C152	FRONT FOG LAMP LH	BK	15K867	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF29 (BN)	18	CTRL MOD. - INDICATOR FOG LAMPS FRONT	N/A
2	GD130 (BK-YE)	18	GROUND - HEADLAMP PANEL LEFT # 2ND STUD	N/A

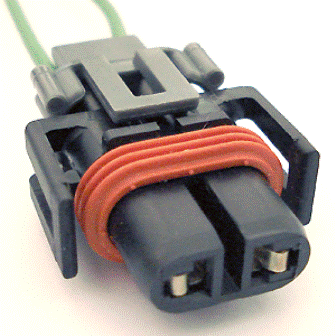

Available Pigtail Kits

Pigtail Kit Part Number WPT-952

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-VZB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Fog/Driving
• Lamp - Headlamp - Low Beam
