Turbocharger Oil Supply Tube - LH: Removal

NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

1. Remove the oil filler cap and then remove the engine appearance cover. Install the oil filler cap.

   Courtesy of FORD MOTOR COMPANY

2. Detach the Heated Oxygen Sensor(HO2S) wire retainer.

   Courtesy of FORD MOTOR COMPANY

3. Remove the exhaust manifold heat shield bolts and then remove the exhaust manifold heat shield.

   Courtesy of FORD MOTOR COMPANY

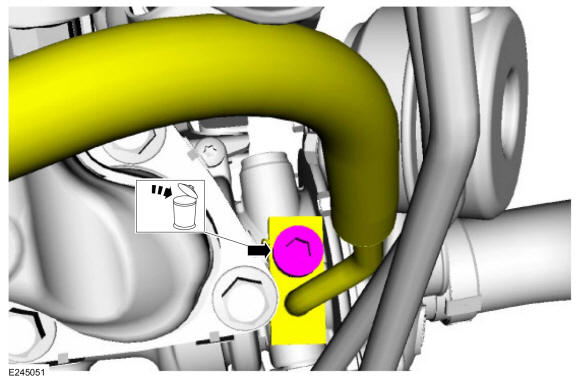

4. Remove and discard the turbocharger oil supply tube bolt, then position the turbocharger oil supply tube out of the way.

   Courtesy of FORD MOTOR COMPANY

5. Remove and discard the turbocharger oil supply tube linked sealing washer and the turbocharger oil supply tube filter.

   Courtesy of FORD MOTOR COMPANY

6. Detach the wiring harness retainer.

   Courtesy of FORD MOTOR COMPANY

7. Remove the engine appearance cover mounting ball stud. Detach the wiring harness retainer.

   Courtesy of FORD MOTOR COMPANY

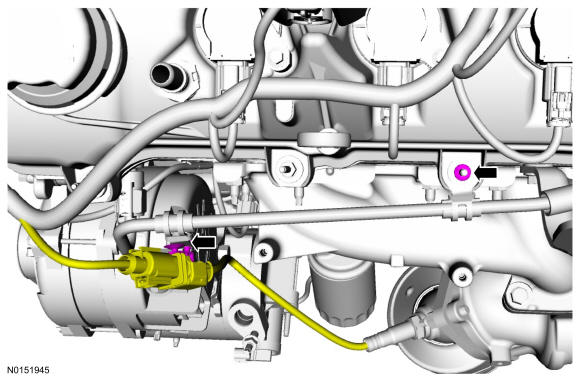

8. Detach the HO2S electrical connector retainer. Remove the turbocharger oil supply tube bracket retaining nut.

   Courtesy of FORD MOTOR COMPANY

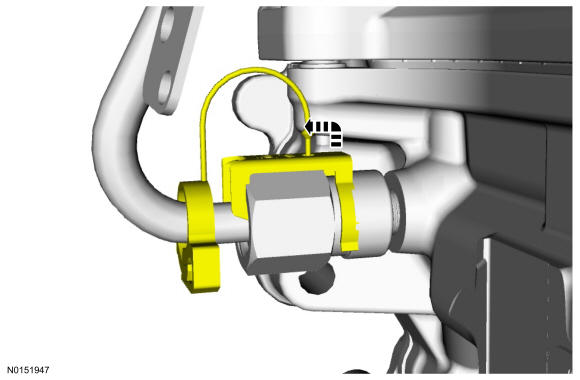

9. Remove the turbocharger oil supply tube secondary latch.

   Courtesy of FORD MOTOR COMPANY

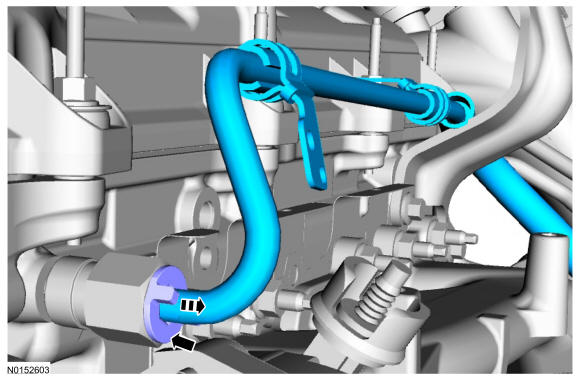

10. Using a Spring Lock Coupling Disconnect Tool, remove the turbocharger oil supply tube from the quick connect fitting. Refer to Fuel System - General Information

Courtesy of FORD MOTOR COMPANY
