Removal And Installation

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. Remove the air cleaner outlet pipe. For additional information, refer to Intake Air System Components .
2. .

   Courtesy of FORD MOTOR COMPANY

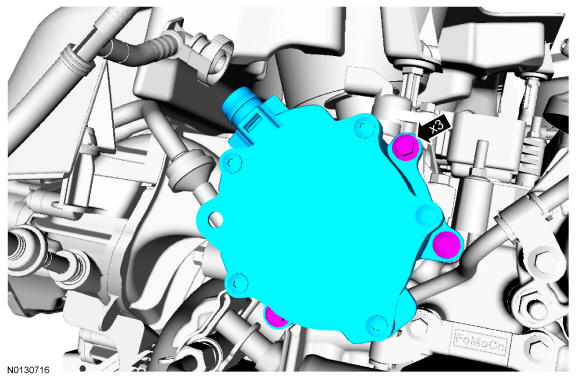

3. .
   • To install, tighten to 10 Nm (89 lb-in).

   Courtesy of FORD MOTOR COMPANY

4. Inspect and, if necessary, install a new brake vacuum pump gasket.

   Courtesy of FORD MOTOR COMPANY

5. To install, reverse the removal procedure.
