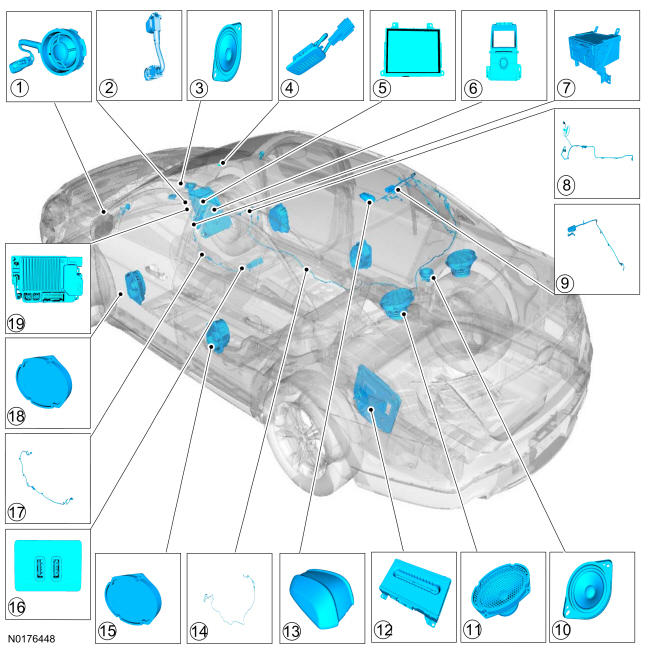

| 1 |
LH A-pillar tweeter speaker |
RH also shown |
| 2 |
Low Voltage Differential Signalling (LVDS) cable |
- |
| 3 |
Instrument panel speaker |
- |
| 4 |
SYNC® microphone |
- |
| 5 |
Front Display Interface Module (FDIM) |
- |
| 6 |
Front Controls Interface Module (FCIM) |
- |
| 7 |
Audio Front Control Module (ACM) |
- |
| 8 |
GPS /satellite splitter |
- |
| 9 |
Antenna module |
- |
| 10 |
Parcel shelf speaker |
- |
| 11 |
LH subwoofer |
RH also shown |
| 12 |
Audio Digital Signal Processing (DSP) module |
- |
| 13 |
GPS /satellite radio antenna |
- |
| 14 |
AM/FM and GPS /satellite radio coaxial cables |
- |
| 15 |
LH rear door speaker |
RH also shown |
| 16 |
USB Hub |
- |
| 17 |
USB cable |
- |
| 18 |
LH front door speaker |
RH also shown |
| 19 |
APIM |
- |
