Parking Brake Cable - Vehicles With: Rear Drum Brakes: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LHD shown, RHD similar.

All vehicles

Detach the parking brake control boot and position the boot upward on the handle.

Courtesy of FORD MOTOR COMPANY
Remove and discard the lock nut.

Courtesy of FORD MOTOR COMPANY
Loosen the parking brake cable adjustment nut 5 full turns.

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
1.5L
Remove the nuts and the heat shields.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

2.0L
Remove the nuts and the crossbrace.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nuts and position the heat shield to allow access to the parking brake cable equalizer.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

Four wheel drive (4WD) vehicles
Remove the nuts and the exhaust heat shield.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the parking brake cable equalizer plug.

Courtesy of FORD MOTOR COMPANY
Press inward on the tabs and detach the parking brake cables from the bracket.

Courtesy of FORD MOTOR COMPANY
1. Align the end of the front cable with the hole in the equalizer.
2. Rotate both rear cables upward.
3. Disconnect the front cable from the equalizer.
Courtesy of FORD MOTOR COMPANY

Front wheel drive (FWD) vehicles

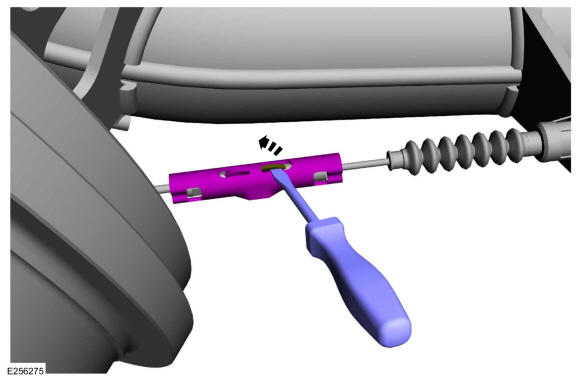

On both sides. Pry upward on the parking brake cable union locking tab.

Courtesy of FORD MOTOR COMPANY

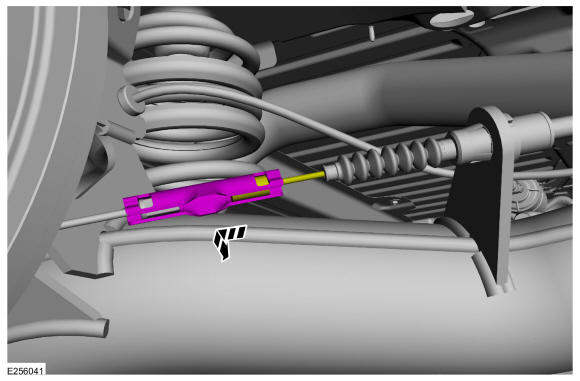

On both sides. Detach the rear parking brake cable from the rear cable union.

Courtesy of FORD MOTOR COMPANY

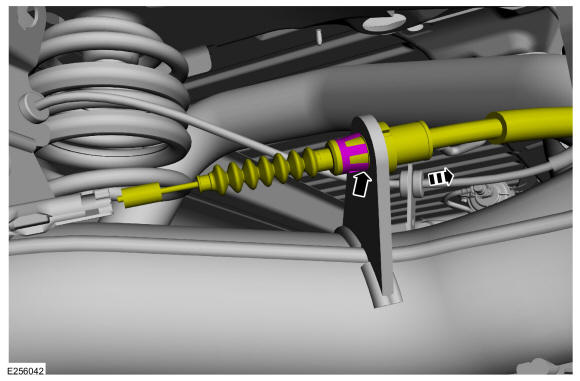

On both sides. Press inward on the tabs and detach the rear parking brake cable from the axle.

Courtesy of FORD MOTOR COMPANY

Four wheel drive (4WD) vehicles

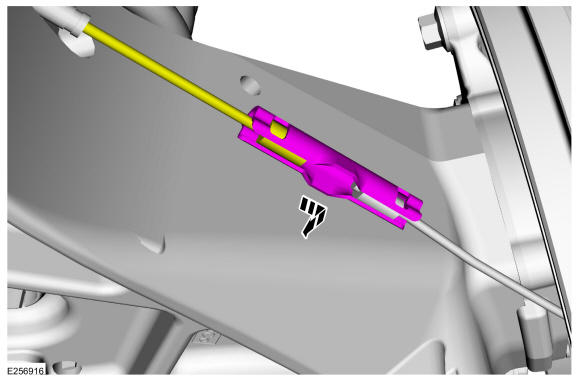

On both sides. Detach the rear parking brake cable from the rear cable union.

Courtesy of FORD MOTOR COMPANY

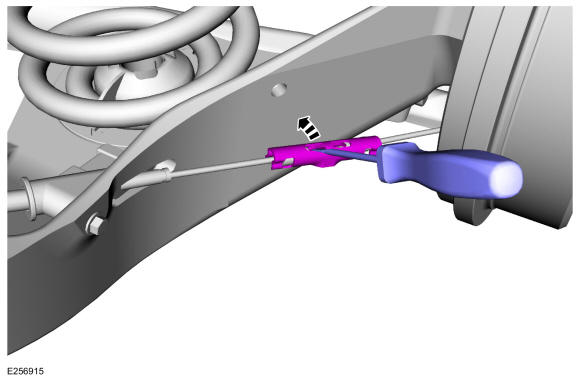

On both sides. Detach the rear parking brake cable from the rear cable union.

Courtesy of FORD MOTOR COMPANY

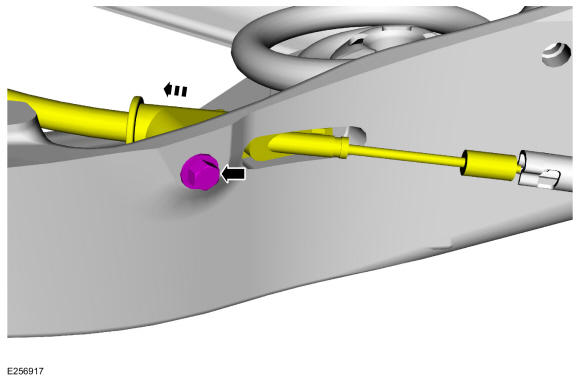

On both sides. Remove the bolt and detach the rear parking brake cable from the axle.

Courtesy of FORD MOTOR COMPANY

All vehicles
1. Remove the bracket fasteners.
  Torque: Front wheel drive (FWD) nuts: 18 lb.ft (25 Nm) Four wheel drive (4WD) bolts: 18 lb.ft (25 Nm)
2. Detach the cable retainers and the remove the rear parking brake cables.

Courtesy of FORD MOTOR COMPANY
