Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Vehicles Without: Rear Seat Side Airbag - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

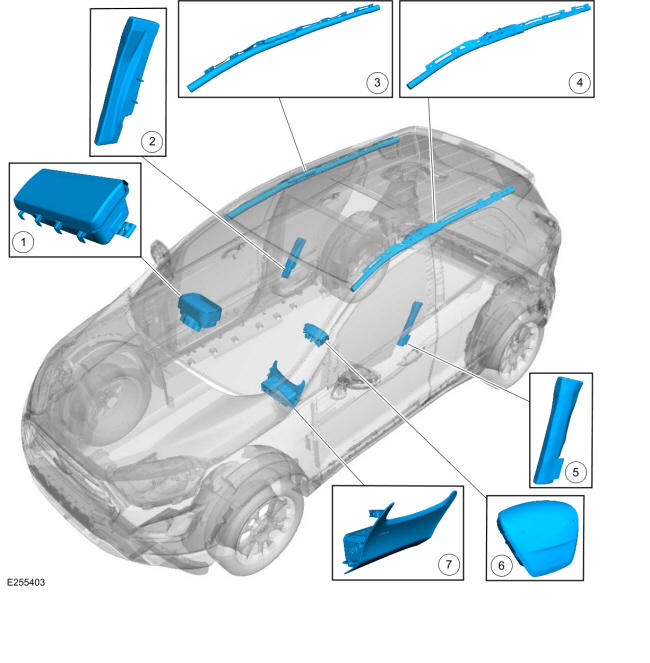

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Passenger airbag |
| 2 |
Passenger side airbag |
| 3 |
Passenger side curtain airbag |
| 4 |
Driver side curtain airbag |
| 5 |
Driver side airbag |
| 6 |
Driver airbag |
| 7 |
Driver knee airbag (if equipped) |

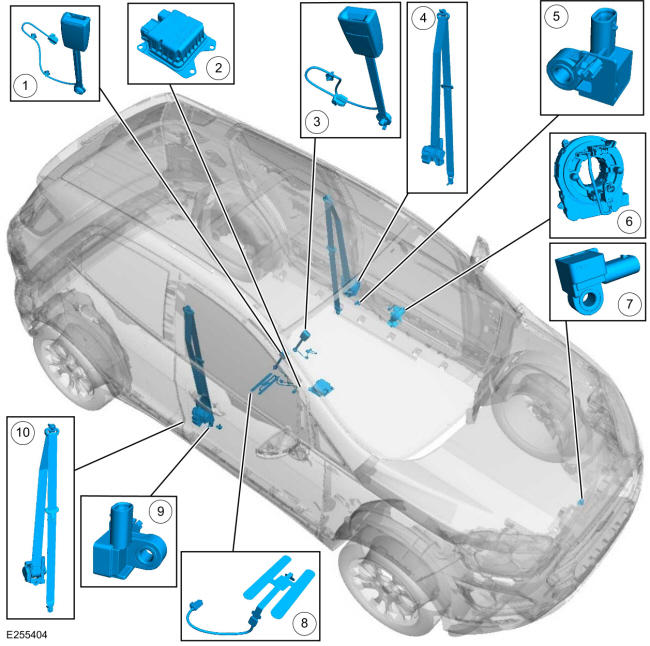

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Passenger seatbelt buckle (includes buckle sensor) |
| 2 |
RCM |
| 3 |
Driver seatbelt buckle (includes buckle sensor) |
| 4 |
Driver seatbelt retractor and pretensioner |
| 5 |
Driver B-pillar side impact sensor |
| 6 |
Clockspring |
| 7 |
Front impact severity sensor |
| 8 |
Seatbelt minder sensor |
| 9 |
Passenger B-pillar side impact sensor |
| 10 |
Passenger seatbelt retractor and pretensioner |
