Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Vehicles With: Rear Seat Side Airbag - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

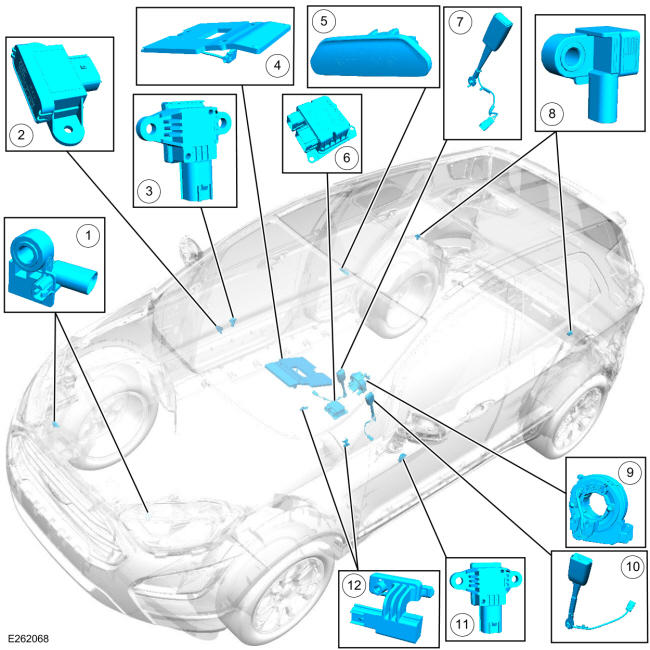

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
LH and RH front impact severity sensors |
| 2 |
BECMB |
| 3 |
Passenger front door side impact sensor |
| 4 |
OCSM (includes OCS sensor and gel-filled bladder) |
| 5 |
PAD indicator |
| 6 |
RCM |
| 7 |
Front passenger seatbelt buckle (includes buckle sensor) |
| 8 |
Driver and passenger side C-pillar side impact sensors |
| 9 |
Clockspring |
| 10 |
Driver seatbelt buckle (includes buckle sensor) |
| 11 |
Driver front door side impact sensor |
| 12 |
Driver and passenger seat position sensors |

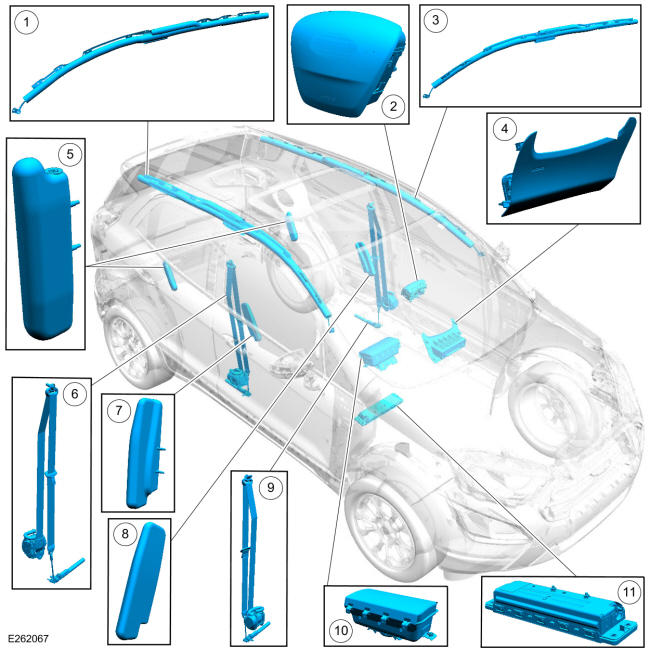

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RH side air curtain |
| 2 |
Driver airbag |
| 3 |
LH side air curtain |
| 4 |
Driver knee airbag |
| 5 |
LH and RH rear side airbags |
| 6 |
Front passenger seatbelt retractor (includes retractor pretensioner, adaptive load limiter and anchor pretensioner) |
| 7 |
Passenger side airbag |
| 8 |
Driver side airbag |
| 9 |
Driver seatbelt retractor (includes retractor pretensioner and anchor pretensioner) |
| 10 |
Passenger airbag (includes canister vent) |
| 11 |
Passenger knee airbag |
