Throttle Body: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
-
- Disconnect the electrical connector.
- Disconnect the quick release coupling. Refer to: Quick Release Coupling .

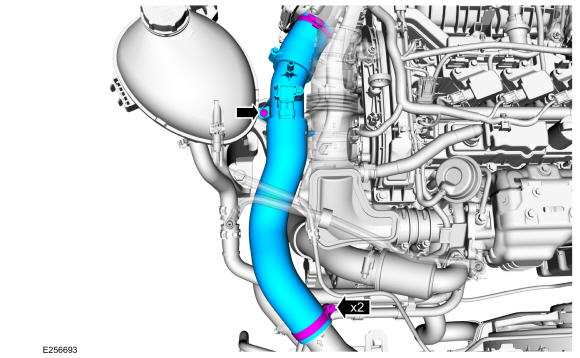

- Loosen the throttle body inlet pipe clamps, remove the bolt and then remove the throttle body inlet pipe.
- Disconnect the throttle body electrical connector.
- Remove the throttle body bolts, then remove the throttle body.
