Throttle Body: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

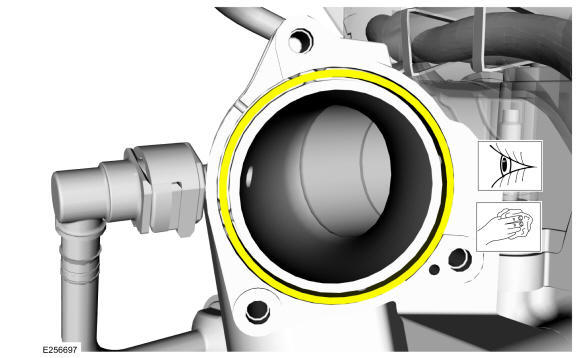

Make sure that the mating faces are clean and free of foreign material.
- Inspect the throttle body gasket, clean and replace the throttle body gasket as needed.
-
NOTE: Tighten the throttle body mounting bolts evenly.

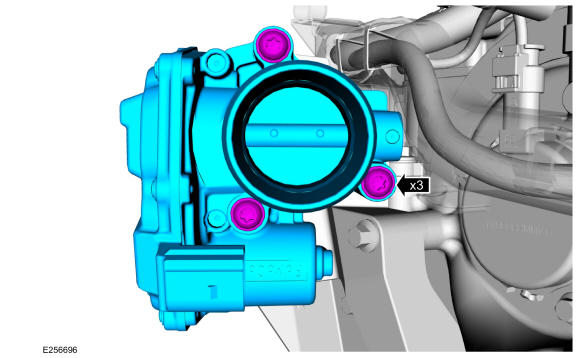

Install the throttle body, then install and tighten the throttle body bolts in the following 2 stages.
Torque: Stage 1: 44 lb.in (5 Nm)Stage 2: 71 lb.in (8 Nm)

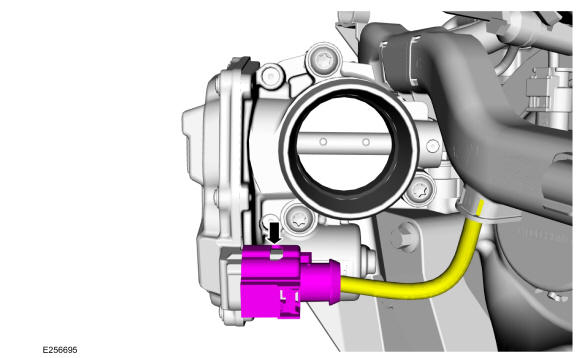

- Connect the throttle body electrical connector.

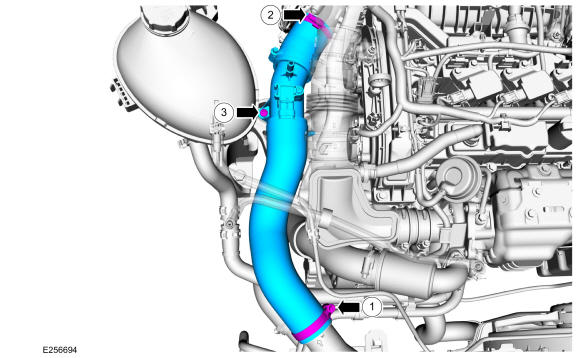

- Install the throttle body inlet pipe and install the throttle body inlet pipe bolt finger tight at this stage.
- Tighten the throttle body inlet pipe clamp.
Torque: 44 lb.in (5.0 Nm)
- Tighten the throttle body inlet pipe clamp.
Torque: 36 lb.in (4.1 Nm)
- Tighten the throttle body inlet pipe bolt.
Torque: 97 lb.in (11 Nm)
- Tighten the throttle body inlet pipe clamp.
-

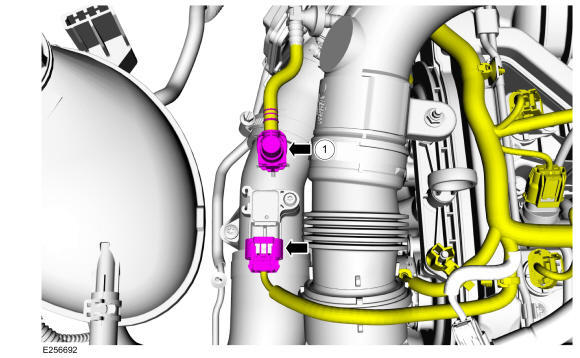

- Connect the electrical connector
- Connect the quick release coupling. Refer to: Quick Release Coupling .
