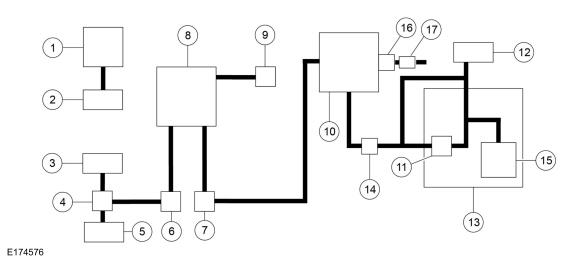

Component Description Diagram
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Valve cover |
| 2 | Turbocharger inlet pipe |
| 3 | Air Cleaner (ACL) outlet pipe |
| 4 | Vapor ejector |
| 5 | Turbocharger to CAC (Charge Air Cooler) tube |
| 6 | Check valve |
| 7 | EVAP (Evaporative Emission) canister purge valve |
| 8 | Intake manifold |
| 9 | PCV (Positive Crankcase Ventilation) valve |
| 10 | EVAP canister |
| 11 | Fuel vapor vent valve |
| 12 | Fuel tank filler pipe |
| 13 | Fuel tank |
| 14 | Fuel Tank Pressure (FTP) sensor and tube |
| 15 | Fuel level sensor |
| 16 | EVAP canister inlet filter |
| 17 | EVAP canister vent solenoid |
