Muffler and Tailpipe: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: The production muffler and tailpipe assembly is one-piece construction. The service muffler and tailpipe is 3-piece construction and have different service section cut positions. It is necessary to cut the production exhaust system to enable the service section(s) to be fitted. Before cutting any part of the exhaust system, check that the position of the cut is correct in comparison to the service sections to be installed.

NOTE: Service section part(s) will use service section clamp for assembly.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: No need to spot weld the bracket to the clamp after installation.

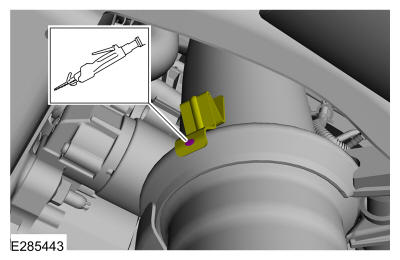

If the bracket and the clamp is spot welded. Cut the spot weld to remove the clamp.

Courtesy of FORD MOTOR COMPANY

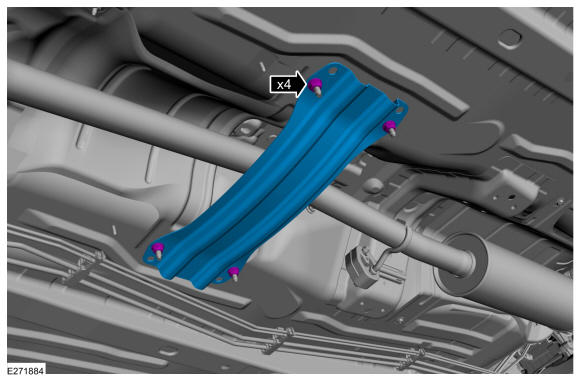

Remove the retainers and the front crossmember brace.

Courtesy of FORD MOTOR COMPANY
NOTE: Align the new muffler and tailpipe component with the old muffler and tailpipe assembly to accurately mark the location to cut. Failure to cut the muffler and tailpipe in the correct location can result in an NVH concern or replacement of the entire muffler and tailpipe assembly.

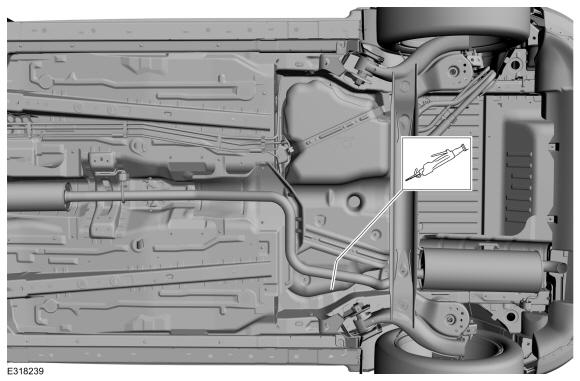

Partial replacement. Cut the resonator from the muffler and tailpipe assembly where shown.

Courtesy of FORD MOTOR COMPANY

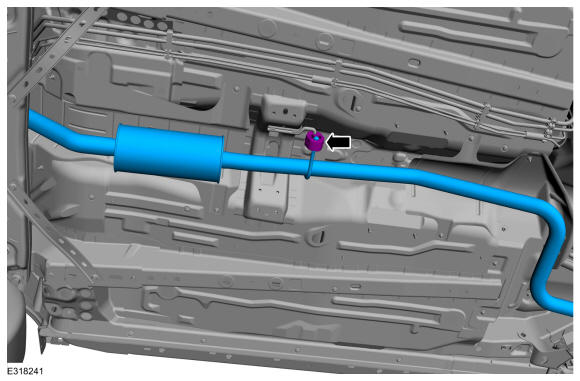

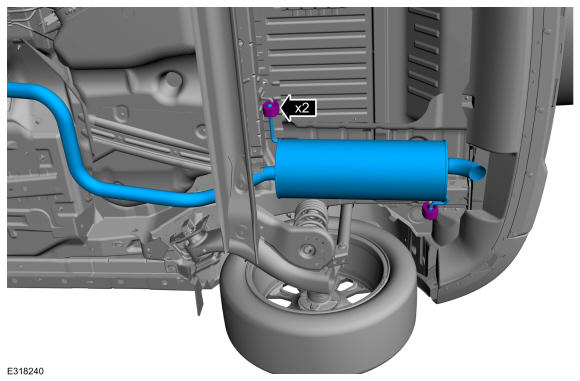

Detach the exhaust isolators and remove the rear muffler.

Courtesy of FORD MOTOR COMPANY

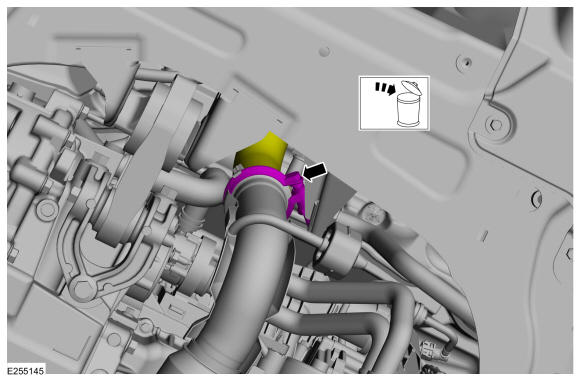

Remove and discard catalytic converter flange clamp.

Courtesy of FORD MOTOR COMPANY
Detach the exhaust isolator and remove the front muffler.

Courtesy of FORD MOTOR COMPANY
