Wastegate Control Valve Solenoid: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

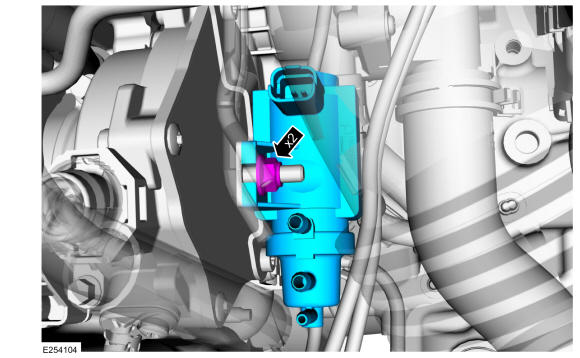

- Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retainers.
Torque: 53 lb.in (6 Nm)
 Courtesy of FORD MOTOR COMPANY
|

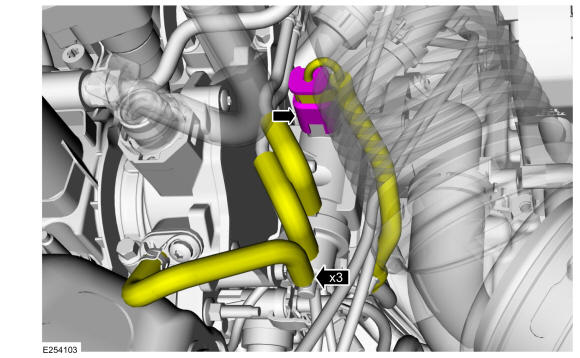

- Connect the wastegate control valve solenoid hoses and the wastegate control valve solenoid electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
