Removal And Installation: Turbocharger: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the charge air cooler inlet pipe was removed, inspect, clean and replace the charge air cooler inlet pipe gasket as needed.

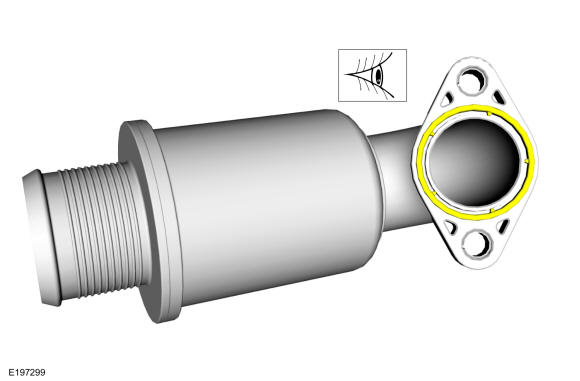

    GFD326315Courtesy of FORD MOTOR COMPANY
  2. If removed, install and tighten the charge air cooler inlet pipe studs.

    Torque: 36 lb.in (4.1 Nm)

    GFD326314Courtesy of FORD MOTOR COMPANY
  3. If removed, install the charge air cooler inlet pipe, then install and tighten the nuts.

    Torque: 97 lb.in (11 Nm)

    GFD326313Courtesy of FORD MOTOR COMPANY
  4. If removed, install and tighten the turbocharger exhaust studs.

    Torque: 89 lb.in (10 Nm)

    GFD326312Courtesy of FORD MOTOR COMPANY
  5. If removed, install and tighten the turbocharger mounting studs.

    Torque: 89 lb.in (10 Nm)

    GFD326311Courtesy of FORD MOTOR COMPANY
  6. Install the NEW turbocharger oil supply tube O-ring seals on the NEW turbocharger oil supply tube and lubricate them with clean engine oil. Refer to: Specifications .
    GFD326316Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure that a NEW turbocharger oil supply tube assembly is installed.

    Install the NEW turbocharger oil supply tube and the turbocharger oil supply tube bolts finger tight.

    1. Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Tighten the turbocharger oil supply tube bolt.

      Torque: 89 lb.in (10 Nm)

    3. Tighten the turbocharger oil supply tube bolt.

      Torque: 89 lb.in (10 Nm)

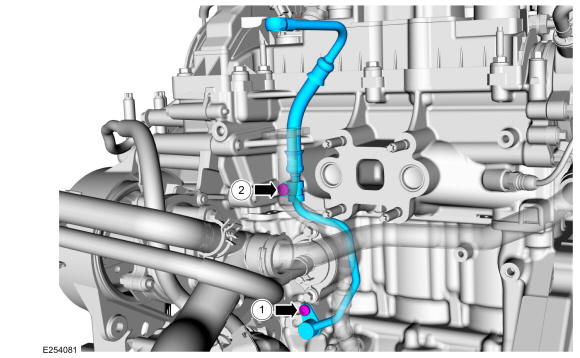

    GFD326317Courtesy of FORD MOTOR COMPANY
  8. Install the NEW the turbocharger heat shield and gasket assembly, then install and tighten the turbocharger heat shield bolt.

    Torque: 89 lb.in (10 Nm)

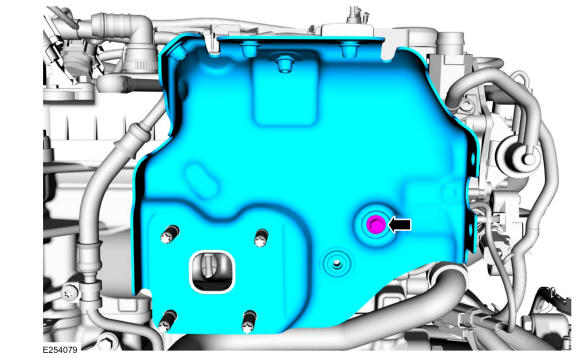

    GFD326318Courtesy of FORD MOTOR COMPANY
  9. NOTE: Only tighten the 4 turbocharger nuts finger tight at this stage.

    Install the turbocharger and the NEW turbocharger nuts. Tighten in the following 5 stages.

    Torque: 1-4: Stage 1: Tighten in the sequence shown: : 35 lb.in (4 Nm) Stage 2: Tighten in the sequence shown: : 168 lb.in (19 Nm) Stage 3: Tighten in the sequence shown: : 18 lb.ft (24 Nm) Stage 4: Wait 30s. Stage 5: Tighten in the sequence shown: : 18 lb.ft (24 Nm)

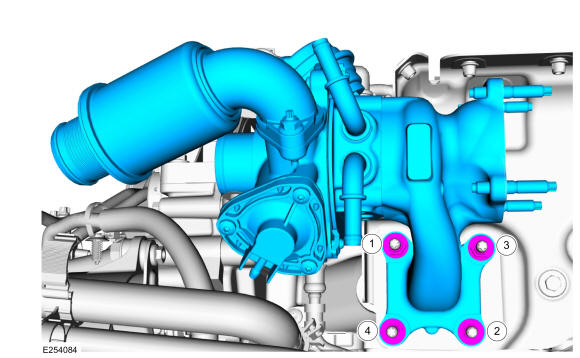

    Fig 1: Turbocharger Location W/ Torque specifications
    GFD326319Courtesy of FORD MOTOR COMPANY
  10. Install the NEW turbocharger oil supply tube sealing washers, then install and tighten the NEW turbocharger oil supply tube bolt.

    Torque: 19 lb.ft (26 Nm)

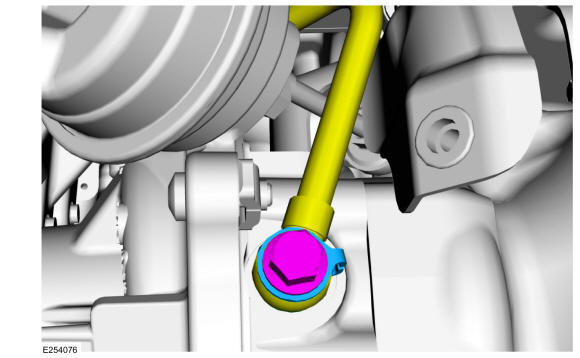

    GFD326320Courtesy of FORD MOTOR COMPANY
  11. Connect the turbocharger wastegate control hose and the hose clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD326306Courtesy of FORD MOTOR COMPANY
  12. Connect the turbocharger bypass valve control hose and the hose clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD326305Courtesy of FORD MOTOR COMPANY
  13. Install a NEW turbocharger oil return tube O-ring seal and lubricate with clean engine oil. Refer to: Specifications .
    GFD326321Courtesy of FORD MOTOR COMPANY
  14. Install the NEW turbocharger oil return tube gasket.
    GFD326322Courtesy of FORD MOTOR COMPANY
  15. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: Make sure that a NEW turbocharger oil return tube assembly is installed.

    Install NEW the turbocharger oil return tube, then install and tighten the turbocharger oil return tube retainers.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 89 lb.in (10 Nm)

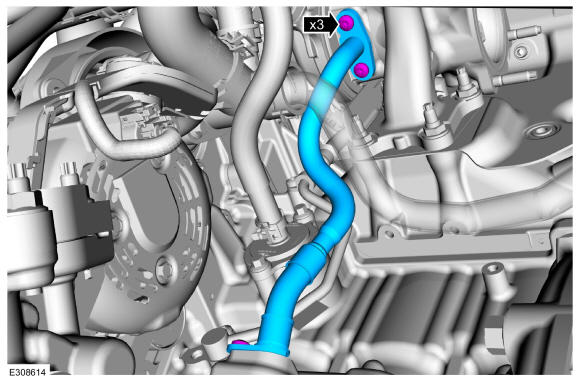

    GFD326323Courtesy of FORD MOTOR COMPANY
    1. Connect the turbocharger coolant tubes and the hose clamps. Use the General Equipment: Hose Clamp Remover/Installer
    2. Unclamp the turbocharger coolant tubes. Use the General Equipment: Hose Clamp(s)
    GFD326302Courtesy of FORD MOTOR COMPANY
  16. Install the catalytic converter. Refer to: Catalytic Converter .
    1. Install the turbocharger outlet tube and then tighten the clamp.

      Torque: 44 lb.in (5.0 Nm)

    2. Install and tighten the turbocharger outlet tube bolt.

      Torque: 97 lb.in (11 Nm)

    GFD326301Courtesy of FORD MOTOR COMPANY
  17. Install the turbocharger inlet pipe and then tighten the clamps.

    Torque: 36 lb.in (4.1 Nm)

    GFD326300Courtesy of FORD MOTOR COMPANY
  18. NOTE: Hose with crankcase pressure sensor shown, others are similar.

    Connect the quick release coupling. Refer to: Quick Release Coupling .

    GFD326299Courtesy of FORD MOTOR COMPANY
  19. Install the engine appearance cover.
    GFD326298Courtesy of FORD MOTOR COMPANY
  20. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  21. Check and top off the engine oil as needed. Refer to: Specifications .
