Turbocharger Oil Supply Tube: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant lines, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the lines to ensure that there are no leaks or repeat repairs.
- Remove the catalytic converter. Refer to: Catalytic Converter .

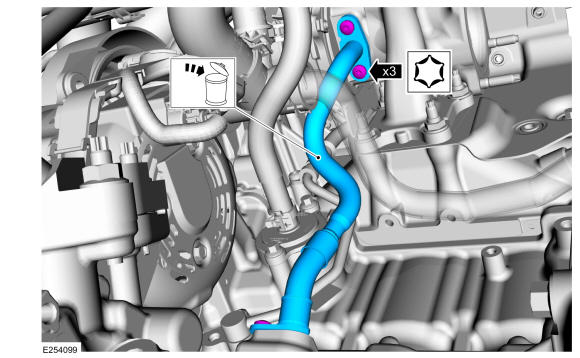

- Remove the turbocharger oil return tube retainers, then remove and discard the turbocharger oil return tube.

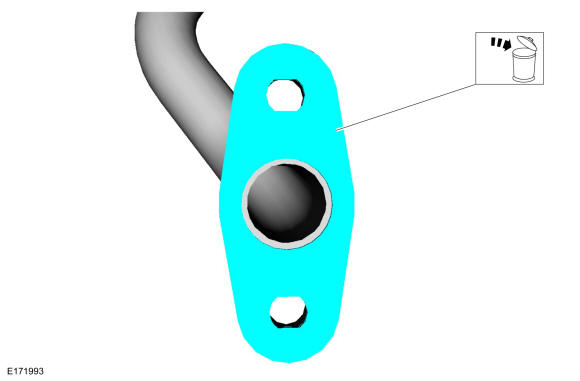

- Remove and discard the turbocharger oil return tube gasket.

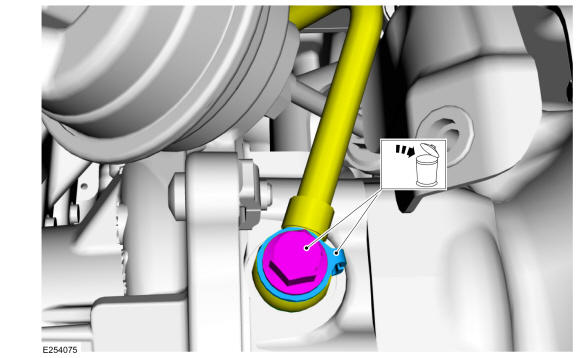

- Remove and discard the turbocharger oil supply tube bolt and the turbocharger oil supply tube sealing washers.

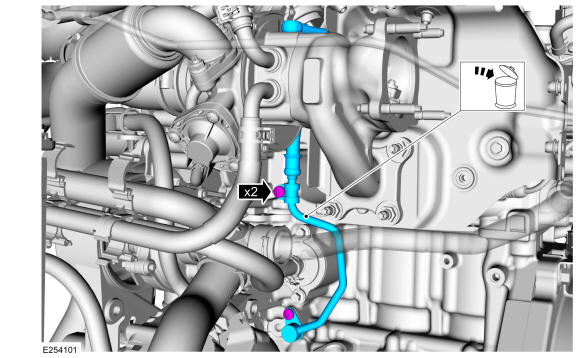

- Remove the turbocharger oil supply tube bolts, then remove and discard the turbocharger oil supply tube.
