Turbocharger Oil Supply Tube: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Install the NEW turbocharger oil supply tube O-ring seals on the NEW turbocharger oil supply tube and lubricate them with clean engine oil. Refer to: Specifications
.
-
NOTE: Make sure that a NEW turbocharger oil supply tube assembly is installed.

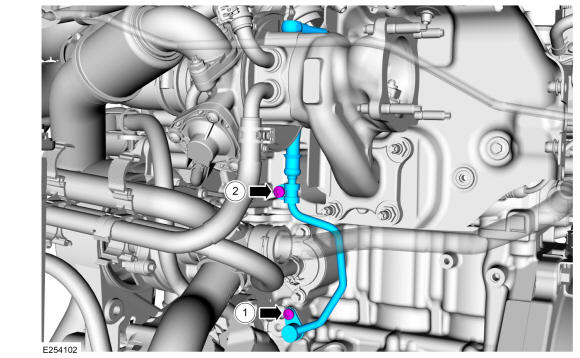

Install the NEW turbocharger oil supply tube and the turbocharger oil supply tube bolts finger tight.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
- Tighten the turbocharger oil supply tube bolt.
Torque: 89 lb.in (10 Nm)
- Tighten the turbocharger oil supply tube bolt.
Torque: 89 lb.in (10 Nm)
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

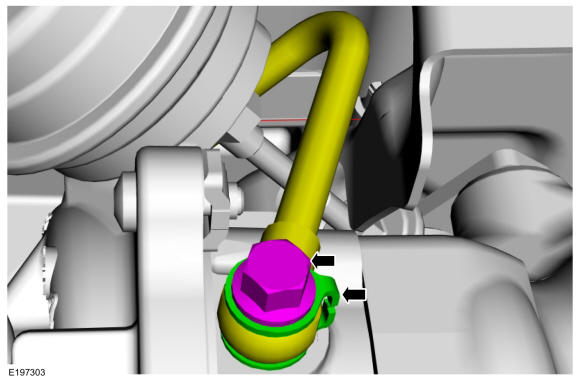

- Install the NEW turbocharger oil supply tube sealing washers, then install and tighten the NEW turbocharger oil supply tube bolt.
Torque: 19 lb.ft (26 Nm)
- Install the NEW turbocharger oil return tube gasket.
- Install a NEW turbocharger oil return tube O-ring seal and lubricate with clean engine oil. Refer to: Specifications
.
-
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.NOTE: Make sure that a NEW turbocharger oil return tube assembly is installed.

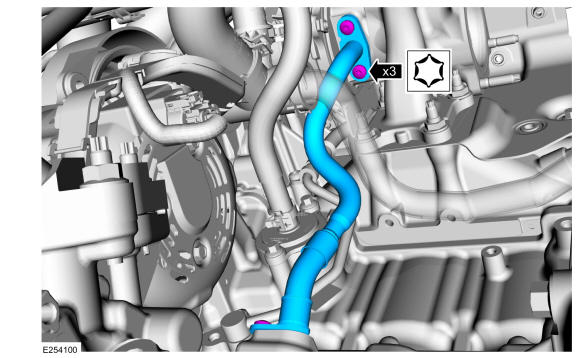

Install the NEW turbocharger oil return tube, then install and tighten the turbocharger oil return tube retainers.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Torque: 89 lb.in (10 Nm)
- Install the catalytic converter. Refer to: Catalytic Converter .
- Check and top off the engine oil as needed. Refer to: Specifications .
