Turbocharger Coolant Supply Tube: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

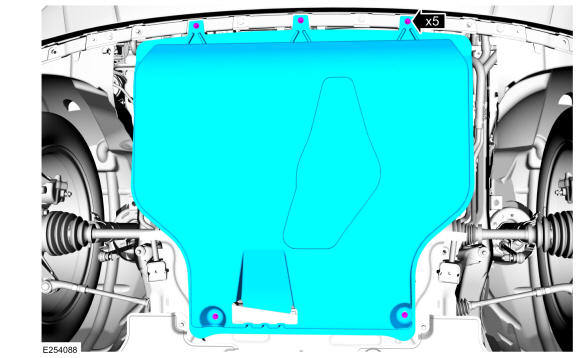

- If equipped, remove the underbody shield fasteners and then remove the underbody shield.

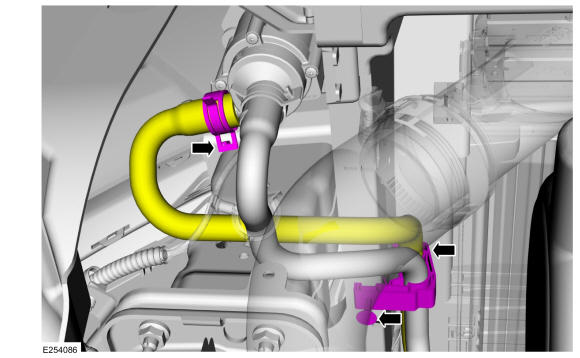

- Release the hose clamp and disconnect the turbocharger coolant supply tube. Release the turbocharger coolant supply tube from the tube retainer. Use the General Equipment: Hose Clamp Remover/Installer

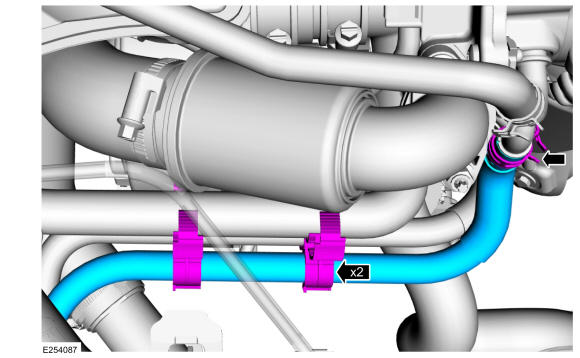

- Release the turbocharger coolant supply tube from the tube retainers. Release the hose clamp, disconnect and remove the turbocharger coolant supply tube. Use the General Equipment: Hose Clamp Remover/Installer
