Turbocharger - Component Location: Notes
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

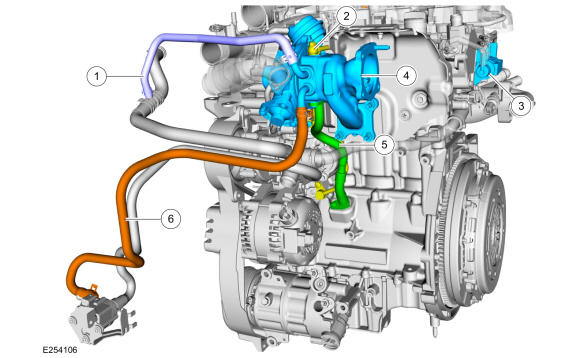

1.0L EcoBoost - Component Location
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Turbocharger coolant return tube |
| 2 |
Turbocharger oil supply tube |
| 3 |
Wastegate control valve solenoid |
| 4 |
Turbocharger |
| 5 |
Turbocharger oil return tube |
| 6 |
Turbocharger coolant supply tube |
