Transmission Fluid Heater Coolant Control Valve: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the RH roll restrictor. Refer to: Roll Restrictor RH - 1.0L EcoBoost (92kW/125PS) .

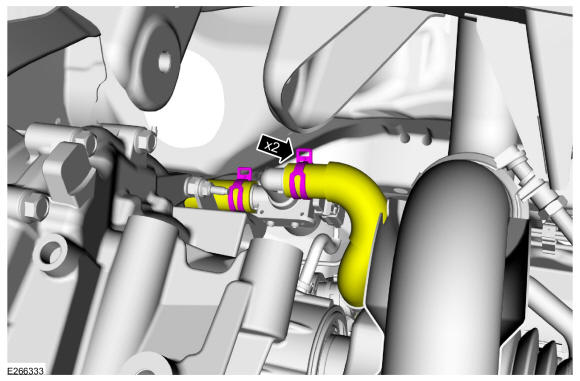

- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Disconnect the coolant control valve electrical connector.

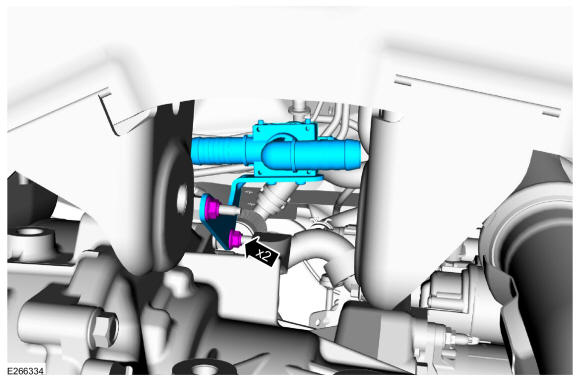

- Remove the bolts and the transmission fluid heater coolant control valve.
Torque
: 97 lb.in (11 Nm)
